00318OT3ER182TC-S
Alt: 13484505
$465.00

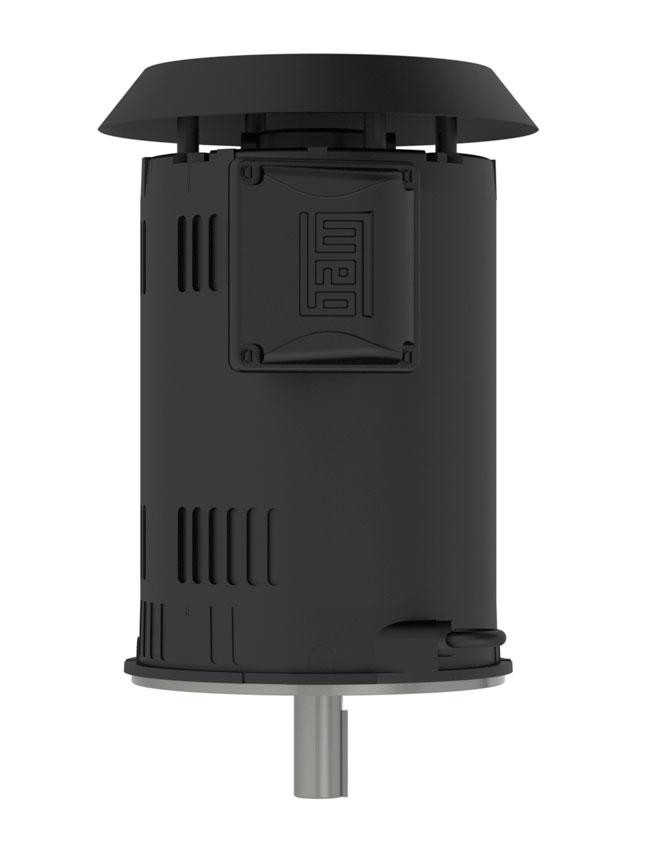

Motor, 3hp, 1800rpm, 3 Phase, 4-Pole, 230/460//190-220/380-415V, 60//50 Hz, 182/4TC Frame, NEMA Premium Efficiency IC01 - ODP, Footless/C Face, Rolled Steel
- Weight:
- 81.90 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Specifications
Alternate Part Number
13484505
Frame
182T
Horsepower
3 hp
Mounting
Footless, C Face
Motor Type
ODP
Phase
Three Phase
All - Specific Ratings
See Spec
RPM
1800
Series
W01 Rolled Steel
All - Voltage
230/460VAC
Warranty
18 Months
Weight
81.9
Features Include:
- Frame: 182/4TC
- Output: 3 HP (2.2 kW)
- Number of Poles: 4
- Frequency: 60 Hz
- Rated speed: 1800 rpm
- Rated voltage: 230/460//190-220/380-415 V
- Rated current: 7.72/3.86 A
- L. R. Amperes: 64.8/32.4 A
- No load current: 4.14/2.07 A
- Rated torque: 8.93 ft.lb
- Enclosure: IC01 - ODP
- Mounting: W-6 / Footless
- Terminal box: Left position
- Rotation: Both (CW and CCW)
- Number of poles: 4
