102883
Alt: NB01R620-MC2276
$154.12

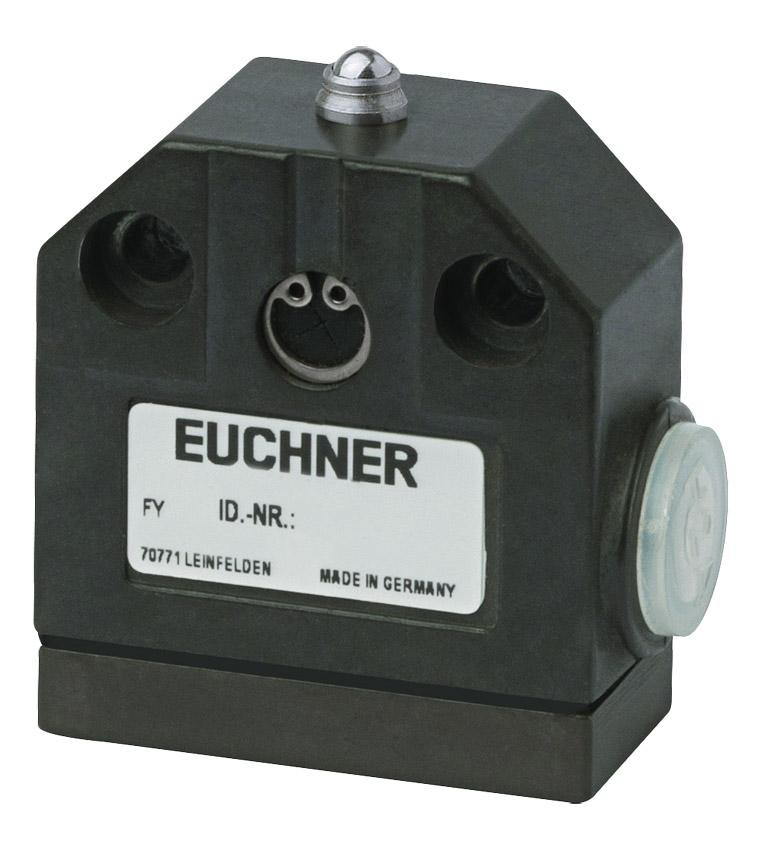

Single Plunger, NB01R620-MC2276
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Connection cross-section: 0.14 - 1 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Switching current (min. at DC 24V): 10 mA
- Thermal rated current Ith: 6 A
- Utilization category: DC-13 2A 24V, AC-15 2A 230V
- Actuating element: Slide bearing metal Roller plunger
- Actuating force: 15 - 20 N
- Ambient temperature: -5 - +80 °C
- Approach speed: 0.01 - 50 m/min
- Connection: 1 x M12 x 1.5
- Degree of protection: IP67
- Installation orientation: any
- Material: Housing Anodized die-cast alloy, Contact Silver alloy, gold flashed
- Mechanical life: 10 x 10⁶
- Number of door position NC contacts: 1
- Number of door position NO contacts: 1
- Switching principle: Changeover contact with snap-action function
