101136304
Schmersal

101136304

Alt: AZ17-11ZRI-B1, AZ 17-11ZRI B1

$136.00

Safety Switch, 7 Lbs. Key Retention Force, 1 NO & 1 NC, Standard with B1 Actuator Key

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Schmersal has a wide range of safety interlock switches with separate actuators:

AZ15 Series:

  • Plastic enclosure
  • 52mm x 75mm x 30mm
  • Large wiring compartment
  • Slotted holes for adjustment, circular holes for location

AZ16 Series:

  • Thermoplastic enclosure
  • 52mm x 90mm 30mm
  • Large wiring compartment
  • Slotted holes for adjustment, circular holes for location

AZ16ZI Series:

  • Above, however, coding level 'High' according to ISO 14119

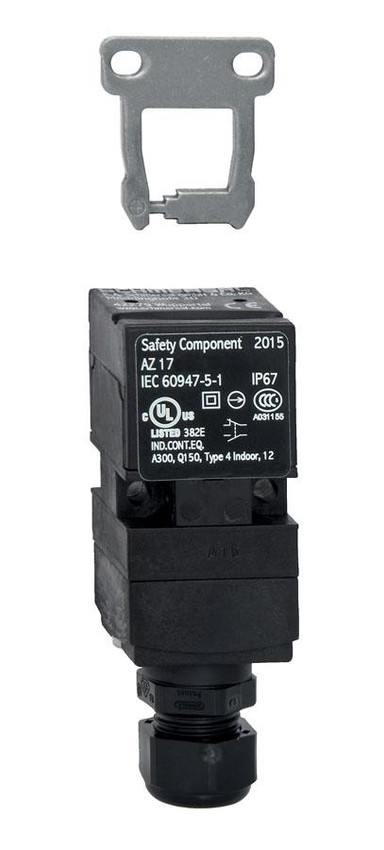

AZ17 Series:

  • Thermoplastic enclosure
  • Small body
  • 8 actuating planes

AZ17ZI Series:

  • Above, however, coding level 'High' according to ISO 14119



Series Features Include (US Standard)

  • With individual coding, up to 200 combinations
  • Thermoplastic enclosure
  • Small body
  • Long life
  • Double insulated X
  • Including cable gland M16 (standard), Option "ST" denotes M12 connector
  • Slot sealing plug included
  • High level of contact reliability with low voltages and currents
  • Not sensitive to dirty conditions by virtue of patented roller system
  • 8 actuating planes
  • Cut clamp terminals (IDC method) or connector
Accessories
!
✓
