121855
Alt: MGB-L1B-PNA-L-121855
$2,734.19

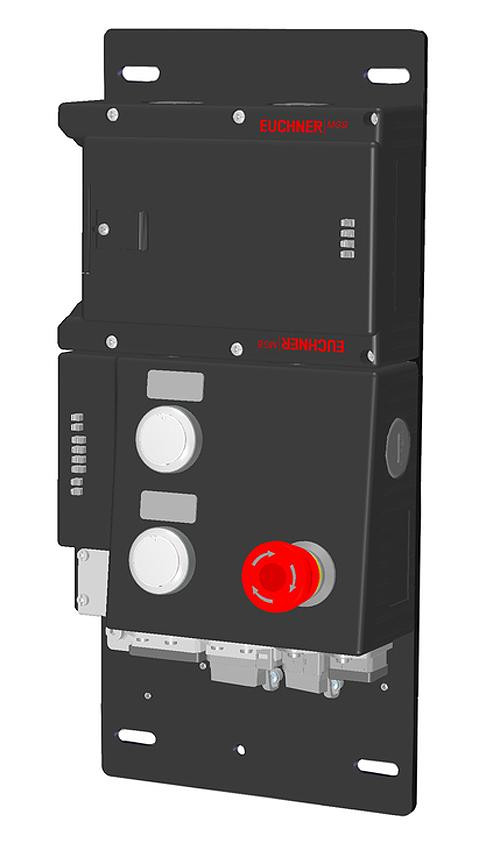

Multifunctional Gate Box, Guard Locking by Spring Force with 3 Controls: Illuminated E-Stop According to ISO 13850, 2 Illuminated Pushbuttons, Including Adhesive Labels, Profinet Connection via Push-Pull Plugs According to IEC 61076-3-117,
- Weight:
- 8.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Guard locking with guard lock monitoring
- Emergency stop according to ISO 13850, illuminated
- 2 illuminated pushbuttons
- including adhesive labels
- Push-pull plug
- Pre-assembled on mounting plates
- Integrated Profinet RT switch
- Unicode
- Housing material: Housing Reinforced plastic, die-cast zinc nickel-plated, stainless steel
- Degree of protection: IP54
- Installation orientation: Door hinge DIN left
- Guard locking principle: Closed-circuit current principle
- Current consumption: max.500 mA
- Rated insulation voltage Ui: 75 V
Technical Information:
- Euchner Safety System MGB-...-PN... Multifunctional Gate Box Locking Set Technical Data
- Euchner Safety System MGB-...-PN... Multifunctional Gate Box Instruction Manual
- Euchner Safety System MGB-L.B-PN Safety System PROFINET Safety Information
- Euchner Multifunctional Gate Box Catalog
Application Notes:
