EP0306C
Teco Westinghouse

EP0306C

Alt: MAX-E1 Series

$3,317.26

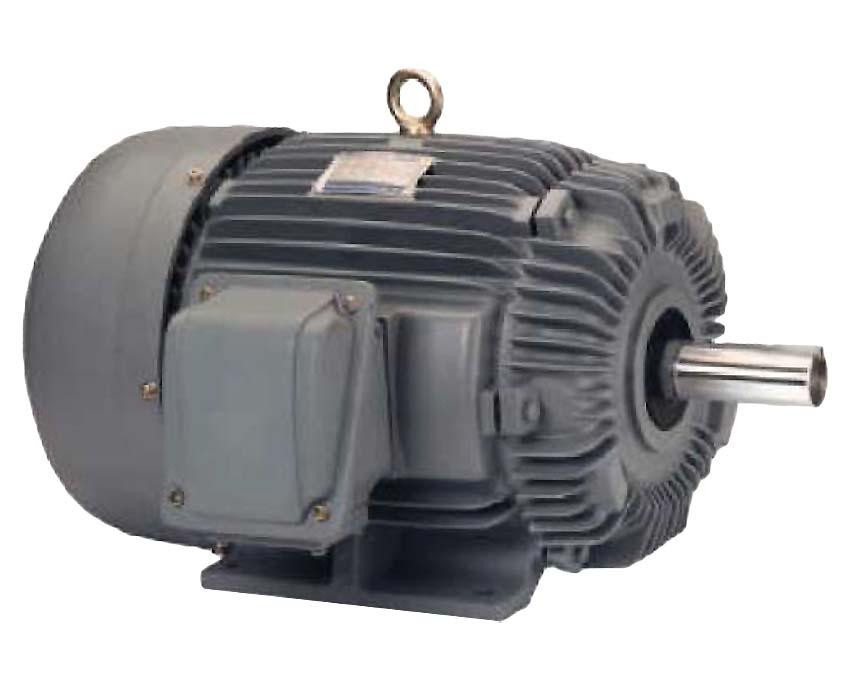

Motor, 30hp, 1200rpm, 6-Pole, 230/460V, 37.5FL A, 60Hz, 326TC Frame, Three Phase Induction, MAX E1 NEMA Premium Efficiency Severe Duty TEFC, C-Face, (Cannot Ship UPS, Drop Ship Only Via Truck)

Weight:
569.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.

In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.

After acquiring Motovario, TECO also has a line of gearmotors.

Features Include:

  • Enclosure: Totally Enclosed Fan Cooled
  • Voltage: 230/460V (Usable on 208V)
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
  • Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box(9)
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
  • Designed for 3300 ft. Elevation(4)
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction for F# 140T - 449T, Copper/Copper Alloy Rotor
  • Construction for F# 5000 and Larger(10)
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Light Gray - Munsell N5.0
  • Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
  • High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for F# 280TS and Larger
  • Automatic Grease Discharge Fittings on Regreasable Models
  • Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
  • Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
  • Stainless Steel Nameplate
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31(5,6,11)
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
  • 12 Leads for 7.5 HP to 125 HP
  • Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
  • Rubber Dust Flinger on Drive-End for F# 140T - 280T
  • Catalog Numbers Ending in "R" Come Standard with Roller Bearings for Belted Applications.
