121298
Alt: MSC-CE-AZ-FO4-121298
$504.35

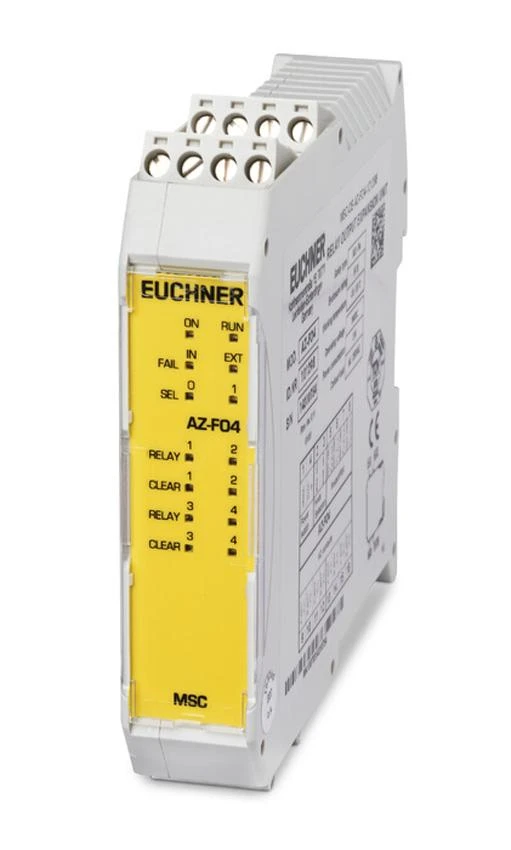

Expansion Device, 4 safe relay outputs, MSC-CE-AZ-FO4-121298
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Output expansion
- 4 safe relay outputs
- Compact housing with width of only 22.5 mm
- Straightforward diagnostics via LED displays
- Plug-in screw terminals (expansion plug included)
- Dimensions: 108 x 22.5 x 114.5
- Material: Housing Polyamide
- Ambient temperature: -10 - +55 °C
- Degree of protection: IP20
- Mounting method: Mounting rail 35mm
- Connection: Plug-in screw terminal
- Cable length: max.100 m
- Number of inputs: 4
- For node selection Number of inputs: 2
- Operating voltage DC: UB 24 V DC -20% - +20% PELV
- Rated voltage: 250 V
- Power consumption: max.3 W
- External relay monitoring: (EDM), automatic, manual operation
- Switching current: 20 - 6000 mA
- Utilization category acc. to EN 60947-5-1: AC-15 240V; 3A / DC-13 24V; 1A
