054784
Alt: 54784, ZSB054784
$969.63

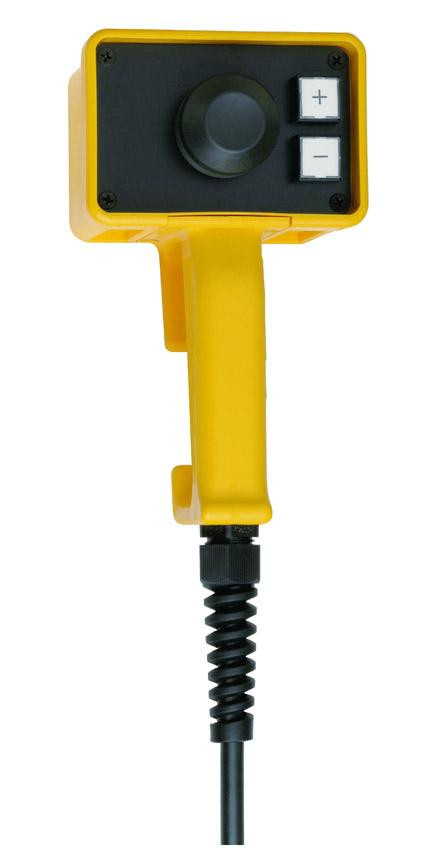

Enabling Pushbutton, ZSB054784
- Weight:
- 5.65 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- 3-stage function
- Housing G3
- Coiled connecting cable, 7 m
- Two illuminated pushbuttons
- Including holder
- Connecting cable: 8x0.5 mm² + 8x0.14 mm²
- Rated conditional short-circuit current: 100 A
- Rated impulse withstand voltage Uimp: 0.8 kV
- Rated insulation voltage Ui: 250 V
- Short circuit protection according to IEC 60269-1 (at 24V): 2A gG
- Switching current (min. at 24 V): min. 1 mA
- Switching voltage (min. at 10 mA): min. 12 V
- Utilization category: DC-13 Additional elements 100mA 24V/ AC-15 Additional elements 400mA 24V
- Cable length: Coiled 7 m
- Connection: Flying lead
- Degree of protection: IP65
- Housing: Cap: Elastomer, low PAH, black, Housing: Plastic, yellow
- Number of NO contacts: 2
- Number of positively driven contacts: 1
- Switching principle: Slow-action contact elements
