Micron Transformers
B500-2049-GAF
Transformer, 500VA, 4.35 Amps, Primary: 550/575/600V | Secondary: 110/115/120V
$294.00

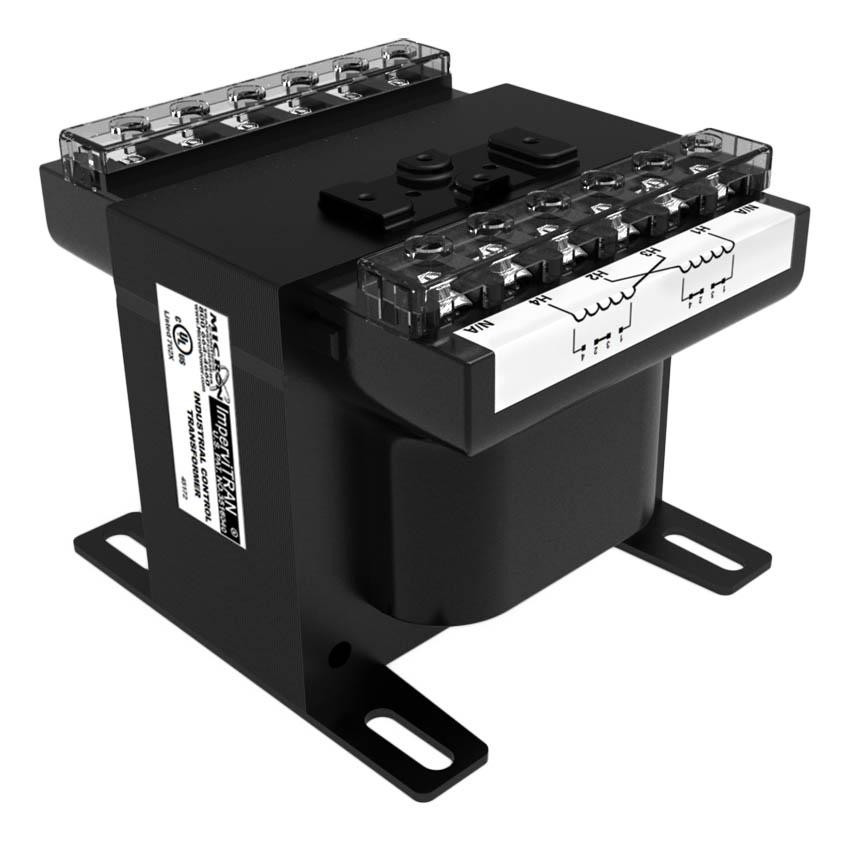

B500-0656-5F
Alt: ImperviTRAN Series
$246.75
Transformer, 500VA, Primary: 690VAC, Secondary: 120x240VAC, 50/60 Hz, Temperature Class 130C, Removable IP-20 Safetouch™ Covers, ImperviTRAN Series (Please Note 10 Piece Minimum May Be Bypassed By Paying A $100 Set Up Fee, Please Contact Cu
- Weight:
- 17.20 LBS
- Minimum Purchase:
- 10 units
Description
In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.
Micron is located in Sterling, Illinois and proudly manufacturers in the USA!
Features Include:
- Primary Voltage: 690
- Secondary Voltage: 120x240
- Rated V.A.: 500
- Rated Frequency: 50/60
- Fusing Capability: No Fusing
- Fusing Detail: No Fusing
- Insulation Class: 130
- Estimated Weight: 16.2 lbs

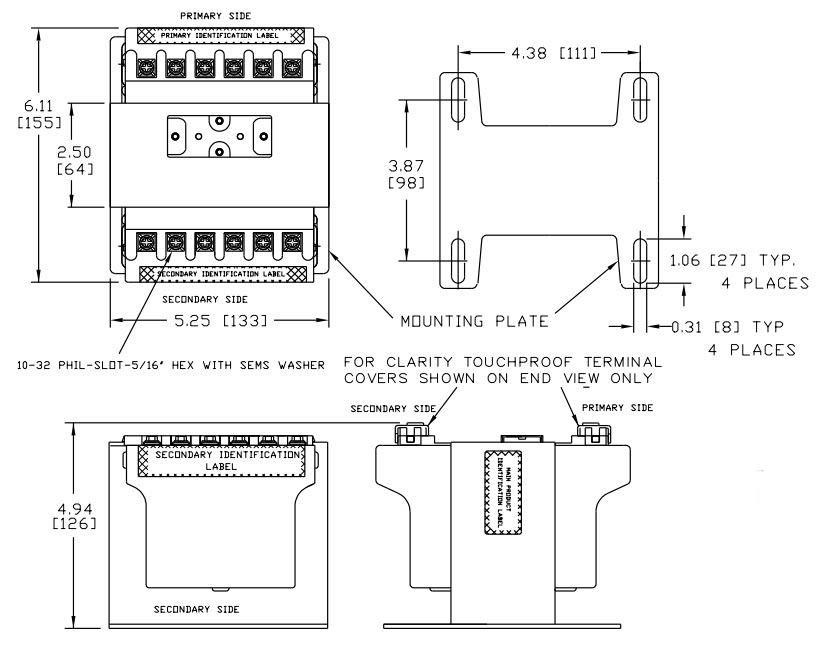

- Has built in mounting plate for easy install of optional primary fuse block
- Has molded-in terminals and terminal barriers
- Terminals have size #10-32 phillips slotted screws
- Meets UL and cUL
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$297.75
Micron Transformers
B500-2286-GAF
Transformer, 500VA, 3.85 Amps, Primary: 208-600V | Secondary:85-130V
$541.50
Micron Transformers
B500-0487-8F
Transformer, 500VA, 3.85 Amps, Primary: 208-600V | Secondary:85-130V
$361.50
Micron Transformers
B500-2008-1F
Transformer, 500VA, w/ Secondary Fuse Clip, PRI: 208/230/460V, SEC: 24/115V
$247.50
Micron Transformers
B500-2069-GAF
Transformer, 500VA, 4.55/2.27 Amps, Primary: 380/400/415V | Secondary: 110x220V
$347.25
Micron Transformers
B500-2246-GAF
Transformer, 500VA, 20.8/4.3 Amps, Primary: 230/400/460/575V | Secondary: 24/115V
$540.75
Micron Transformers
B500-2009-GAF
Transformer, 500VA, 4.35 Amps, Primary: 220x440, 230x460, 240x480V | Secondary: 110/115/120V
$276.75
Micron Transformers
B500-2029-GAF
Transformer, 500VA, 20.83 Amps, Primary: 120x240V | Secondary: 24V
$297.75
