B500LP1519JJF
Alt: ImperviTRAN Series
$270.00

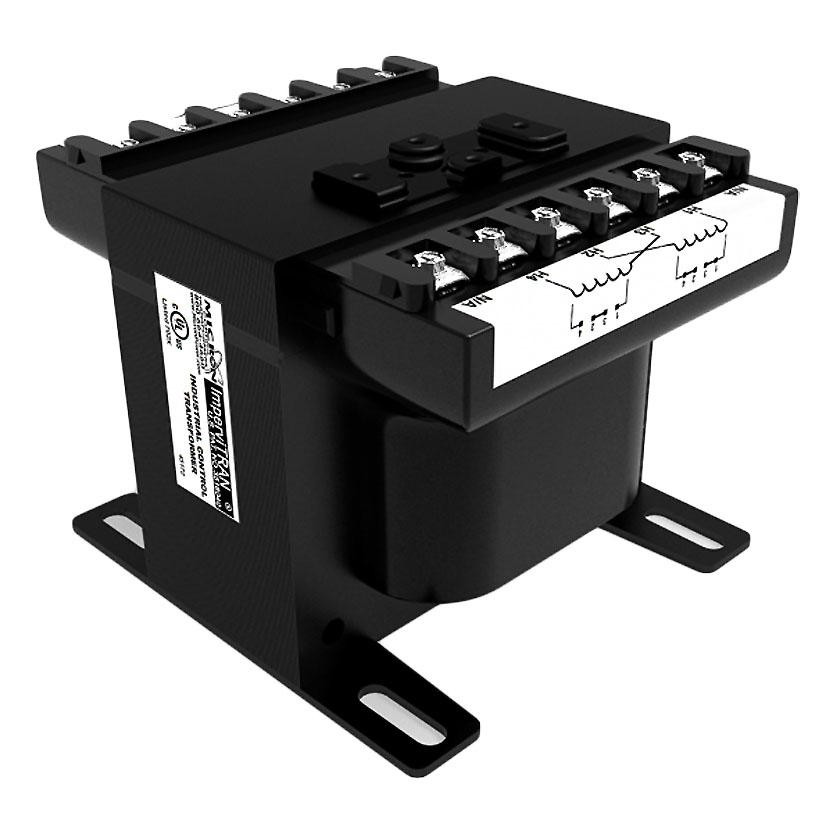

Transformer, 500VA, Primary: 120x240VAC, Secondary: 120x240VAC, 50/60 Hz, Temperature Class 130C, UL/cUL, ImperviTRAN Series (Please Note 10 Piece Minimum May Be Bypassed By Paying A $100 Set Up Fee, Please Contact Customer Service If You W
- Weight:
- 18.40 LBS
- Minimum Purchase:
- 10 units
Description
In 1977 Micron introduced the GlobalTRAN line of control transformers, in 1998 they added low voltage general purpose and buck-boost transformers. They have since added DIN rail mount power supplies to their line as well.
Micron is located in Sterling, Illinois and proudly manufacturers in the USA!
Features Include:
- Primary Voltage: 120X240
- Secondary Voltage: 120x240
- Rated V.A.: 500
- Rated Frequency: 50/60
- Fusing Capability: No Fusing
- Fusing Detail: No Fusing
- Insulation Class: 130
- Estimated Weight: 17.4 lbs

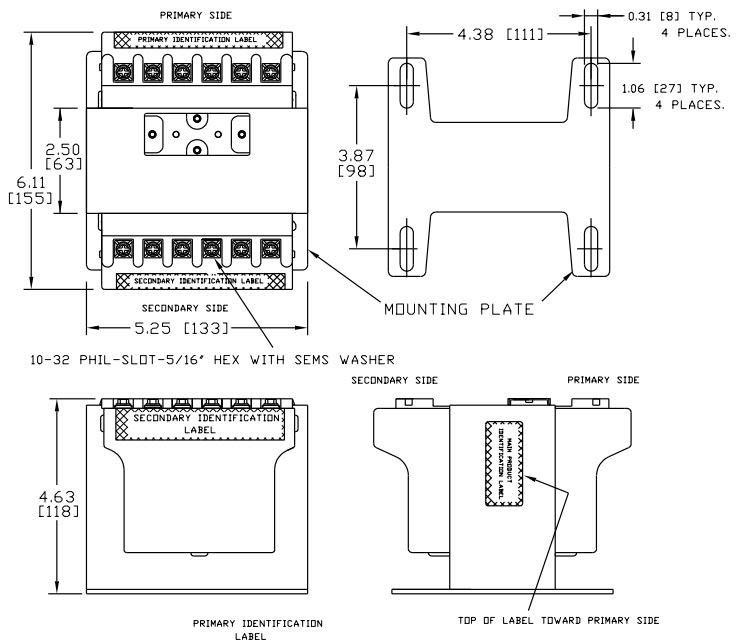

- Has built in mounting plate for easy install of optional primary fuse block
- Has molded-in terminals and terminal barriers
- Terminals have size #10-32 phillips slotted screws
- Meets UL and cUL
