In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.



Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.

General Specifications:

Power Supply Voltage: 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz, 24 V AC/DC (±10%)

Power Consumption:

• When using 100 to 240 V AC: 10 VA MAX.
• When using 24 V DC/AC: 5 VA MAX.

Insulation Resistance:

• 20 MΩ or more (500 V DC)

Withstand Voltage:

• Power source ↔ all terminals: 1500 V AC for 1 min
• Relay contact output ↔ all terminals: 1500 V AC for 1 min
• Between others: 500 V AC for 1 min

Input impedance

• Thermocouple, mV input: 1 MΩ or more
• Current input: 150 Ω or less (built-in diode)
• Voltage input: About 1 MΩ

Case:

• Material: ABS, PPO
• Non-combustibility grade: UL94V-0 equivalent
• Color: Black

Protection Structure:

• Panel front side: IP66, NEMA-4X equivalent (When the panel is mounted using our genuine packing. Not water-proof if mounted closely together.)
• Body: IP20 equivalent (slits on top and bottom)
• Terminals: IP00 equivalent. Terminal cover can be mounted optionally.

Technical Information:

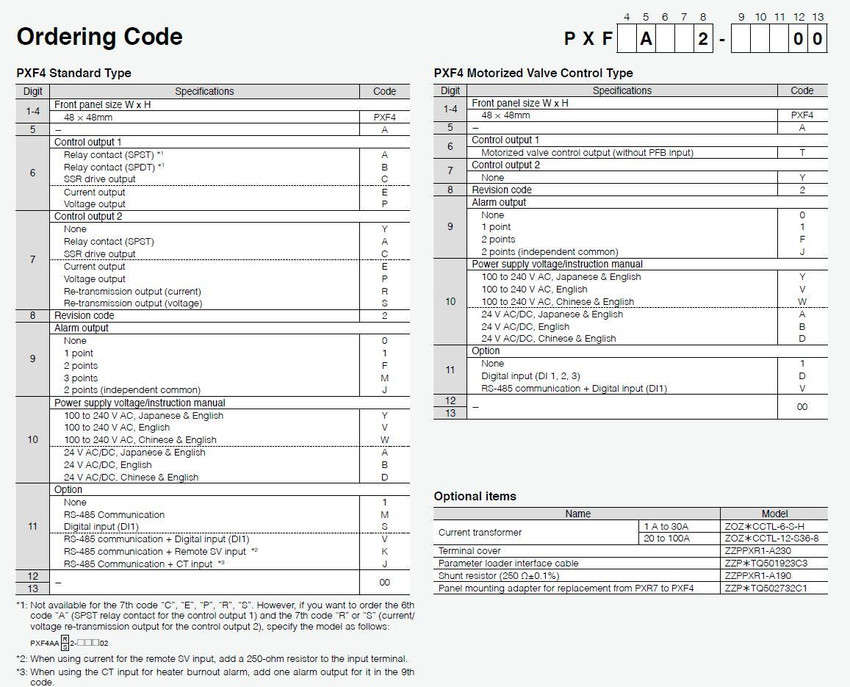

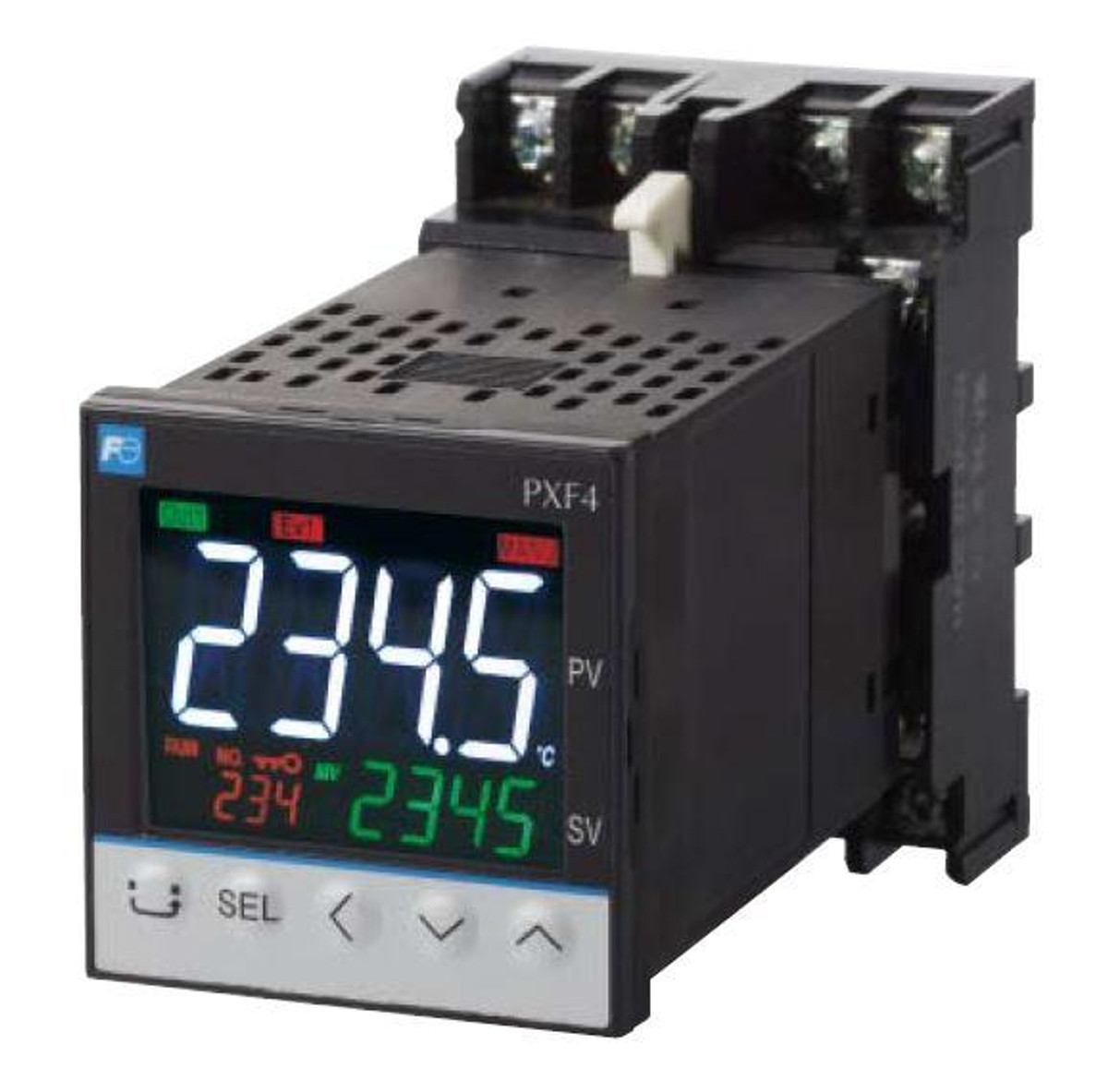

• Fuji Temperature Micro-Controller PXF4-2 Socket Series Datasheet
• Fuji Temperature Micro-Controller PXF4-2 Socket Series Instruction Manual
• Fuji Temperature Control PXF Series Catalog
• Fuji Temperature Control Catalog
• Fuji Temperature Control PX Series Application Examples
