In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.
Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.
General Specifications:
Power Supply Voltage: 24 V AC/DC (±10%)
Power Consumption:
When using 100 to 240 V AC: 10 VA MAX.
When using 24 V DC/AC: 5 VA MAX.
Insulation Resistance:
20 MΩ or more (500 V DC)
Withstand Voltage:
Power source ↔ all terminals: 1500 V AC for 1 min
Relay contact output ↔ all terminals: 1500 V AC for 1 min
Between others: 500 V AC for 1 min
Input impedance
Thermocouple, mV input: 1 MΩ or more
Current input: 150 Ω or less (built-in diode)
Voltage input: About 1 MΩ
Case:
Material: ABS, PPO
Non-combustibility grade: UL94V-0 equivalent
Color: Black
Protection Structure:
Panel front side: IP66, NEMA-4X equivalent (When the panel is mounted using our genuine packing. Not water-proof if mounted closely together.)
Body: IP20 equivalent (slits on top and bottom)
Terminals: IP00 equivalent. Terminal cover can be mounted optionally.

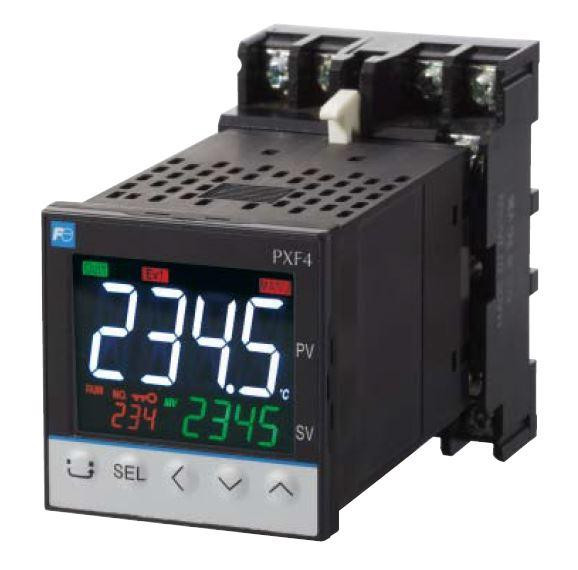

Temperature Controller, Universal Input, RTD/mA, Backwards Compatible Wiring to PXR/W/Z, Control Output: SSR Drive, Alarm Output: 2 Points, 24VAC/DC Power Supply
