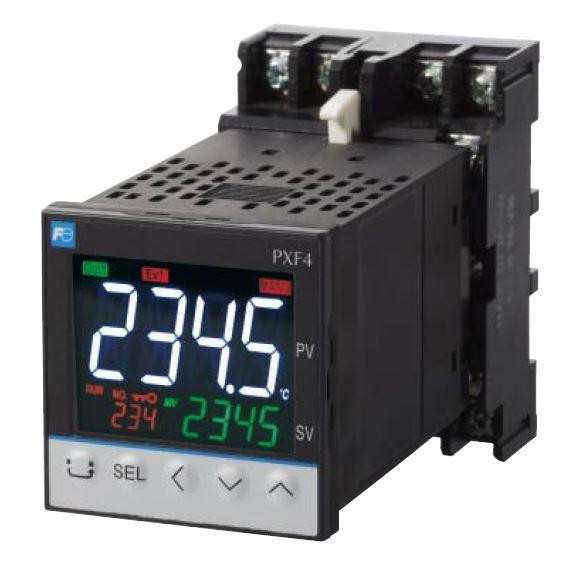

Fuji Temp Controller
PXF4NCU2-4VYA1
Temperature Controller, Universal Input, RTD/mA, Backwards Compatible Wiring to PXR/W/Z, Control Output: SSR Drive, Alarm Output: None, 100-240VAC Power Supply
$271.00
Available Now!
Available Now!
(1 in stock)
PXF4ABU2-4VYA1
Alt: Available While Stock Lasts! (Replaced PXR4-RAS1-4V0A1)
$271.00
Temperature Controller, Relay Output (SPDT), 1/16 DIN - 48x48mm, 100-240VAC, No Alarm
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.
Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.
General Specifications:
Power Supply Voltage: 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz, 24 V AC/DC (±10%)
Power Consumption:
- When using 100 to 240 V AC: 10 VA MAX.
- When using 24 V DC/AC: 5 VA MAX.
Insulation Resistance:
- 20 MΩ or more (500 V DC)
Withstand Voltage:
- Power source ↔ all terminals: 1500 V AC for 1 min
- Relay contact output ↔ all terminals: 1500 V AC for 1 min
- Between others: 500 V AC for 1 min
Input impedance
- Thermocouple, mV input: 1 MΩ or more
- Current input: 150 Ω or less (built-in diode)
- Voltage input: About 1 MΩ
Case:
- Material: ABS, PPO
- Non-combustibility grade: UL94V-0 equivalent
- Color: Black
Protection Structure:
- Panel front side: IP66, NEMA-4X equivalent (When the panel is mounted using our genuine packing. Not water-proof if mounted closely together.)
- Body: IP20 equivalent (slits on top and bottom)
- Terminals: IP00 equivalent. Terminal cover can be mounted optionally.
