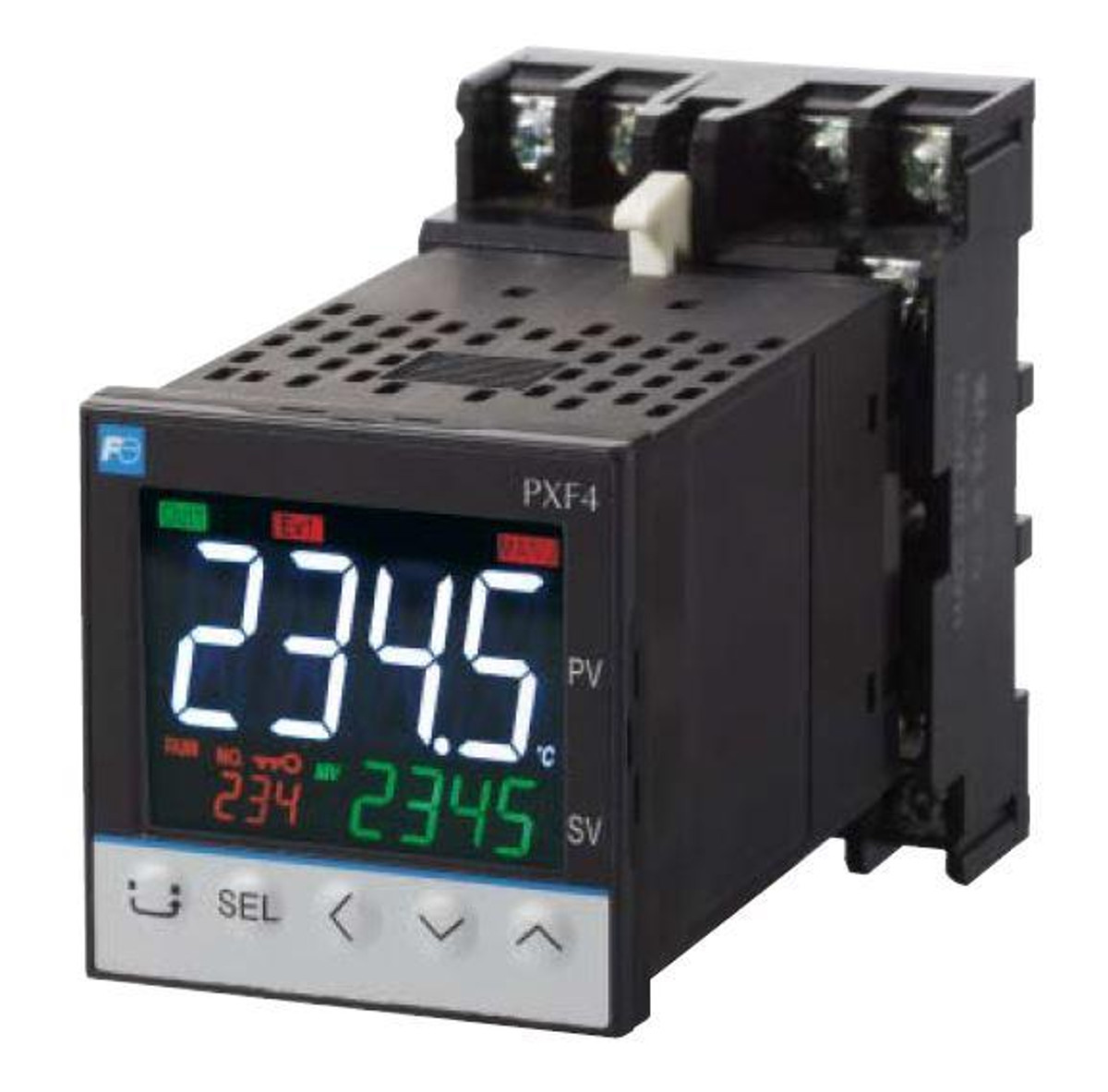

Fuji Temp Controller
PXF4NEU2-GVYA1
Temperature Controller, 1/16 DIN (48 x 48mm), 100-240VAC, 4-20mA DC
$313.00
**Happy New Year! Our offices will close at Noon on December 31st, reopening on January 2nd.**
Available Now!
Available Now!
(1 in stock)
PXF4ABU2-GVYA1
Alt: This Item Replaced PXR4-RAS1-5V0A1 and PXR4-RAS1-GV0A1
$313.00
Temperature Controller, 1/16 DIN (48x48mm) Socket Mount, Input signal: Universal, thermocouple, RTD, Voltage, Current, MV, Control Output 1: Relay (SPDT), Alarm Output: 2 Points, Power supply: 100-240VAC
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.
Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.
General Specifications:
Power Supply Voltage: 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz, 24 V AC/DC (±10%)
Power Consumption:
- When using 100 to 240 V AC: 10 VA MAX.
- When using 24 V DC/AC: 5 VA MAX.
Insulation Resistance:
- 20 MΩ or more (500 V DC)
Withstand Voltage:
- Power source ↔ all terminals: 1500 V AC for 1 min
- Relay contact output ↔ all terminals: 1500 V AC for 1 min
- Between others: 500 V AC for 1 min
Input impedance
- Thermocouple, mV input: 1 MΩ or more
- Current input: 150 Ω or less (built-in diode)
- Voltage input: About 1 MΩ
Case:
- Material: ABS, PPO
- Non-combustibility grade: UL94V-0 equivalent
- Color: Black
Protection Structure:
- Panel front side: IP66, NEMA-4X equivalent (When the panel is mounted using our genuine packing. Not water-proof if mounted closely together.)
- Body: IP20 equivalent (slits on top and bottom)
- Terminals: IP00 equivalent. Terminal cover can be mounted optionally.
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Fuji Temp Controller
PXF4ABU2-4VYA1
Temperature Controller, Relay Output (SPDT), 1/16 DIN - 48x48mm, 100-240VAC, No Alarm
$271.00
Fuji Temp Controller
PXF4ACU2-GVYA1
Temperature Controller, Universal Input, Thermocouple/Volt, Backwards Compatible wiring to PXR/W/Z, SSR Drive Output, 2 Points Alarm Output, 100-240VAC (50/60Hz)
$313.00
Fuji Temp Controller
PXF4AEU2-GVYA1
Temperature Controller, Socketed, Universal Input, Thermocouple/Volt, Backwards Compatible Wiring to PXR/W/Z, Control Output 1: Current, Alarm Output: None, Optional Alarm Output: 2 Points (+$39.00), Power Supply: 100 to 240VAC, PXF4 Series
$313.00
$313.00
Fuji Temp Controller
PXF4NBU2-GVYA1
Temperature Controller, 1/16 DIN (48 x 48mm), Input Signal: Universal Input ( PXW,PXZ,PXV), Control Output: Relay Contact (SPDT), Terminal Form: Socket Type, Alarm Output: 2 Points, Power Supply Voltage: 100-240VAC
$313.00
