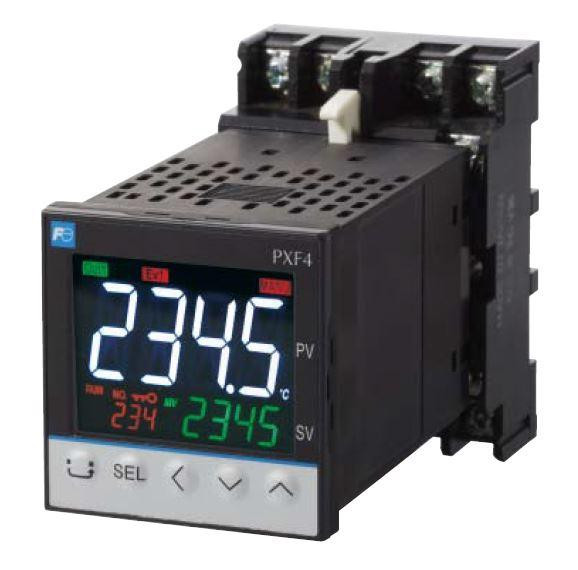

PXF4NBU2-GVYA1

In 1976, Fuji was the first in the industry to develop general purpose inverters! They helped expand in a number of fields based on their energy saving capabilities.



Today we are an authorized distributor for Fuji variable frequency drives, temperature controllers and HMI. Their FRENIC- line of VFDs are known for their high quality and the ability to suit a wide variety of application needs.

Series Features Include:

Precise control

• Achieved a processing speed of 50 ms which is 10 times faster than conventional models. Reading accuracy is also improved from ±0.5% to ±0.2%*. *Comparison under 0–850°C range, with RTD.

Easy-to-see display

• MVA LCD* which offers high contrast and wide viewing angle. Process value is displayed in white. *Minimal translucent type vertical alignment liquid crystal display

Practical options

• Simple watt-hour metering function: allows you to monitor energy consumption. Operating days alarm: tells you the appropriate time for maintenance work

Most compact class in industry

• 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility

Universal input

• You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts.

Technical Information:

• Fuji Temperature Micro-Controller PXF4-2 Socket Series Datasheet
• Fuji Temperature Micro-Controller PXF4-2 Socket Series Instruction Manual
• Fuji Temperature Control PXF Series Catalog
• Fuji Temperature Control Catalog
• Fuji Temperature Control PX Series Application Examples
