101211067
Alt: MZM100ST2-1P2PWREM-A, MZM 100 ST2-1P2PWREM-A, This is the Recommended Replacement for 103044831 (MZM 100 ST2-1P2PWREM-A-DU)
$873.00

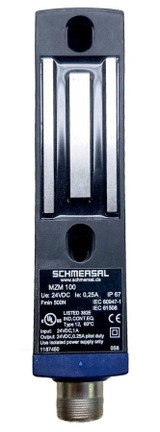

Switch, Solenoid Interlock, Thermo Enclosure, Connector M12, 8 Pole, LED, Power To Lock
- Weight:
- 1.06 LBS
- Minimum Purchase:
- 1 unit
Description
Switch, Solenoid Interlock, Thermo Enclosure, Connector M12, 8 Pole, LED, Power To Lock
Features Include:
- Guard locking monitored
- Automatic latching
- Solenoid interlocks (for the protection of man) with innovating and unique operating principle
- Dimensions: 40 mm x 179 mm x 40 mm
- Electronic contact-free, coded system
- Thermoplastic enclosure
- Max. length of the sensor chain 200 m
- 3 LEDs to show operating conditions
- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Intelligent diagnosis
- Self-monitoring series-wiring of 31 sensors
- Patented
- Connector M12, 8-pole
- Power to lock
- Housing Materials: Plastic, glass-fibre reinforced thermoplastic
- Electrical Connection Design: Connector M12, 8-pole
- Rated Insulation Voltage: 32 V DC
- Operating Current: 1 A
