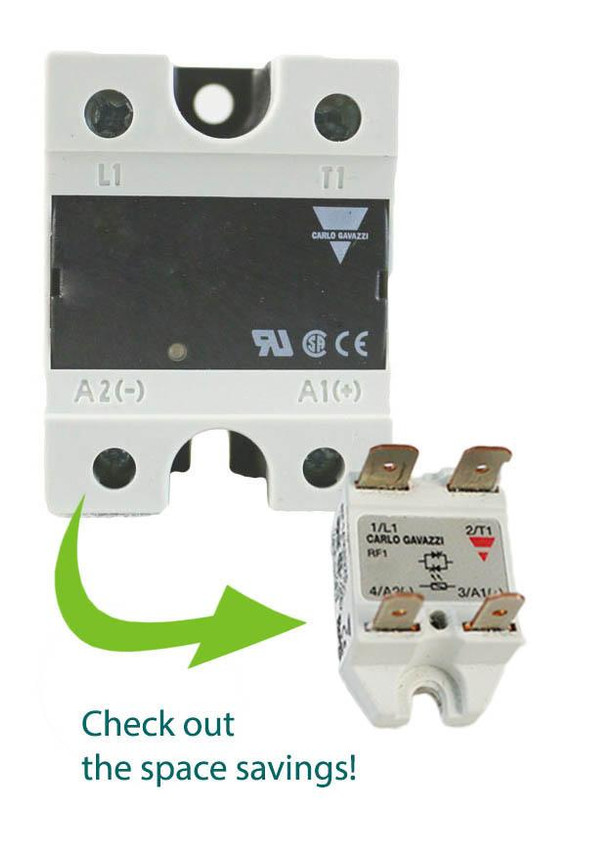

The Carlo Gavazzi RF1 mini puck solid state relay takes up just 30% of the space normally required for standard hockey puck solid state relays!
Available in instant on switching (RF1A) or zero cross switching (RF1B).
Switching is done through back to back thyristors that are more robust than triacs. They use wire bonding assembly technology which reduces mechanical and thermal stresses on the output chips.
The Carlo Gavazzi RF1 relays have a pre-attached thermal interface (thermal pad) to SSR backplate and quick connect terminals for fast installation.
Ideal for coffee machines, vending machines, kitchen appliances, temperature control units, packaging machines and much more.
Marshall Wolf Automation is your stocking, authorized Carlo Gavazzi distributor!
Features Include:
Single phase AC switching SSR
Mini puck - requires just 30% of the space of a traditional hockey puck SSR
Switching through back to back thyristors
Operational ratings: up to 280 VAC, 25 AAC
Control voltage: 5 VDC, 12 VDC, 24 VDC
LED for control status indication
Integrated overvoltage protection on output
Opto isolation input to output 3750 VAC
100k cycles endurance test according to UL508
Pre-attached thermal interface to SSR backplate
Available in zero cross (RF1A) and instant on (RF1B)
Heatsink accessories include RHS5050RFD and RHS38ARFD
