$56.23
088625
Alt: 88625, SN01D558SVM5-M
$162.95

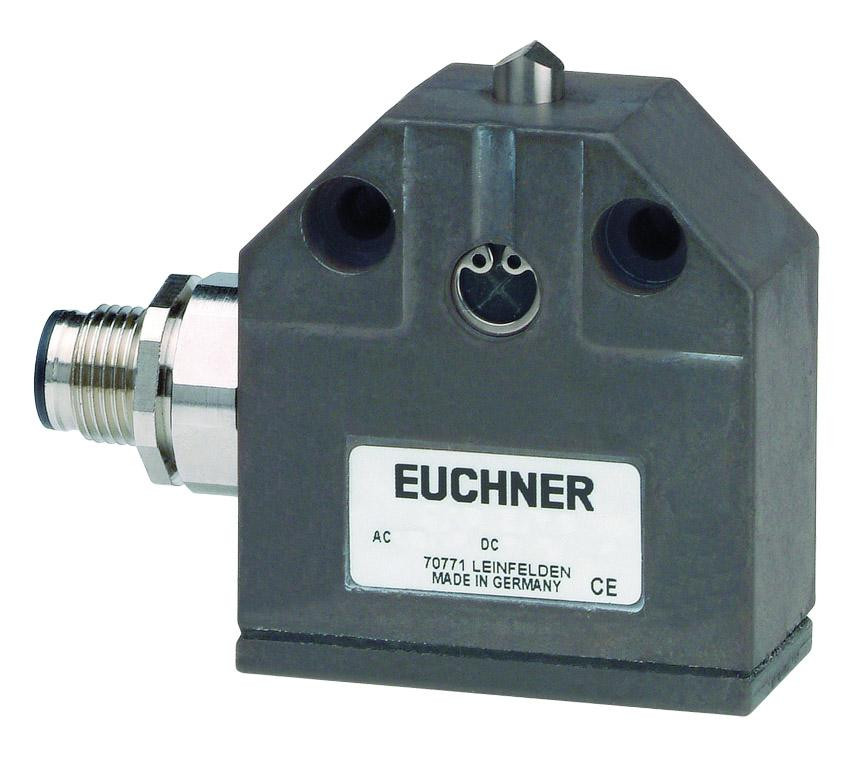

Single Plunger, SN01D558SVM5-M
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 50 V
- Switching current (Min. at DC 5V): 10 mA
- Thermal rated current Ith: 4 A
- Utilization category: DC-13 3A 24V, AC-15 4A 30V
- Actuating element: Chisel plunger
- Actuating force: 15 - 20 N
- Ambient temperature: -5 - +80 °C
- Approach speed: 0.01 - 20 m/min
- Connection: 1 x Plug connector M12, adjustable
- Degree of protection: IP67
- Installation orientation: any
- Material: Housing: Anodized die-cast alloy, Contact: Silver alloy, gold flashed
- Mechanical life: 10 x 10⁶
- Number of door position NC contacts: 1
- Number of door position NO contacts: 1
- Switching principle: Snap-action switching contact
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Euchner
073462
Connecting Cable with Angled Plug Connector, M12 Female Plug, 4-pin + PE, Flying Lead, 5m Black PUR Cable Length, C-M12F05-05X050PU05,0-GA-073462
$67.35
