087558
Alt: 87558, NZ2WO-538L060
$169.08

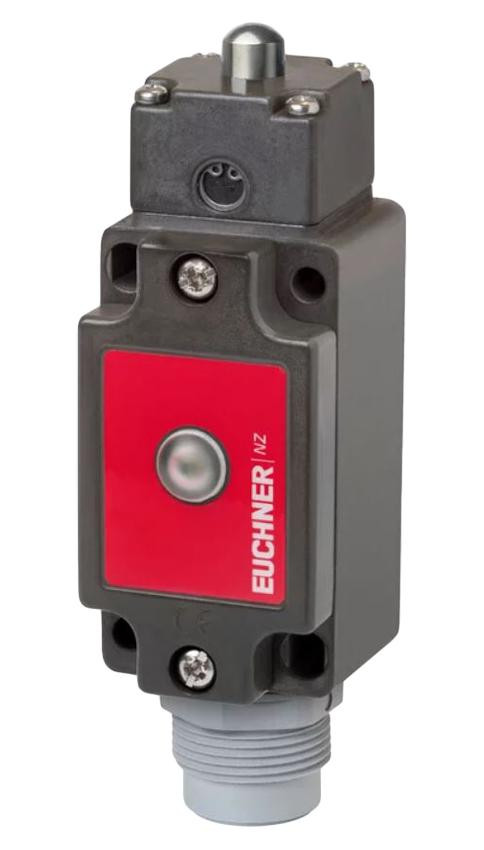

Single Plunger, NZ2WO-538L060
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Version B according to EN 50041(hardened)
- Plug connector SR6
- Display module: AC/DC 12 - 60 - 60 V LED red
- Housing material: Housing Anodized die-cast alloy
- Contact material: Silver alloy, gold flashed
- Degree of protection: IP65
- Switching principle: Snap-action switching contact
- Installation orientation: Any
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
- Connection: 1 x Plug connector SR6
- Approach speed: 0,1 - 10 m/min
- Actuating element: Rounded plunger
- Actuating force: 15 - 30 N
- Thermal rated current Ith: 4 A
- Utilization category acc. to EN 60947-5-1: AC-15 4A 230V | DC-13 4A 24V
- Short circuit protection according to IEC 60269-1: 4A gG
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Switching current: Min. at DC 24V 1 mA
