059481
Alt: 59481, NZ2WO-511L060C1630
$343.66
Single Plunger, NZ2WO-511L060C1630
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Version B according to EN 50041(hardened)

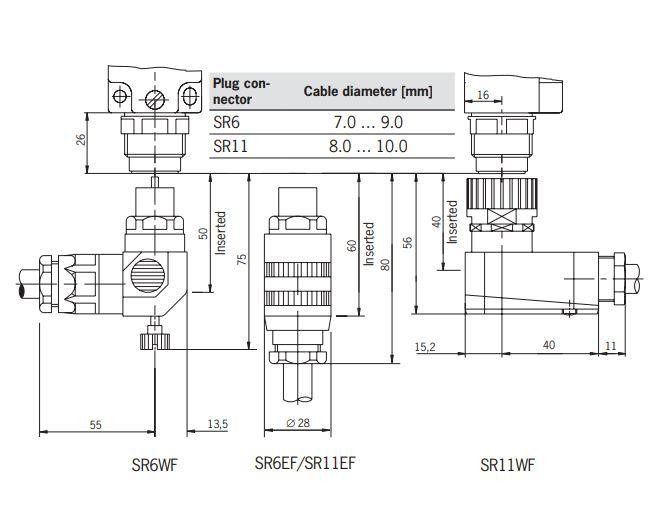

- Plug connector SR6
- LED indicator
- Housing material: Housing Anodized die-cast alloy
- Contact material: Silver alloy, gold flashed
- Degree of protection: IP65
- Switching principle: Snap-action switching contact
- Installation orientation: Any
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
- Connection: 1 x Plug connector SR6
- Approach speed: 0,1 - 10 m/min
- Actuating element: Domed plunger
- Actuating force: 15 ... 30 N
- Thermal rated current Ith: 6 A
- Utilization category acc. to EN 60947-5-1: AC-15 6A 230V | DC-13 6A 24V
- Short circuit protection according to IEC 60269-1: 6A gG
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Switching current: Min. at DC 24V 10 mA
- Display module: AC/DC 60 V 12 - 60 V LED yellow
