090913
Alt: 90913, NZ2WO-3131
$160.98

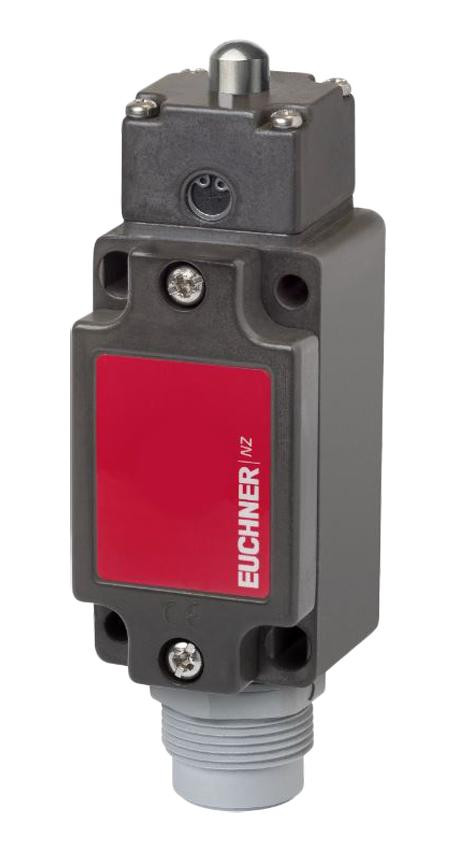

Single Plunger, NZ2WO-3131
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Version B according to EN 50041(hardened)
- Switching principle: Snap-action switching contact
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 50 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current: min. at DC 24V 1 mA
- Thermal rated current Ith: 4 A
- Utilization category: DC-13 4A 24V | AC-15 4A 30V
- Actuating element: Rounded plunger
- Actuating force: 15 - 30 N
- Ambient temperature: -25 - +80 °C
- Approach: speed 0.1 - 10 m/min
- Connection: 1 x Plug connector SR11
- Degree of protection: IP65
- Installation orientation: any
- Material: Contact Silver alloy, gold flashed | Housing Anodized die-cast alloy
- Number of door position positively driven contacts: 2
- Number of NO contacts: 2
