090028
Alt: 90028, NZ2RL-511SVM5
$125.39

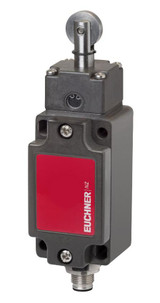

Single Plunger, NZ2RL-511SVM5
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Switching principle: Snap-action switching contact
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 50 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current: min. at DC 24V 10 mA
- Thermal rated current Ith: 4 A
- Utilization category: DC-13 4A 24V | AC-15 4A 230V
- Mechanical values and environment: Actuating element
- Slide bearing metal Roller plunger: Actuating force 15 - 30 N
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.1 - 20 m/min
- Connection: 1 x Plug connector M12
- Degree of protection: IP67
- Installation orientation: any
- Contact: Silver alloy, gold flashed
- Housing: Anodized die-cast alloy
- Mechanical life: 30 x 10⁶
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
