090930
Alt: 90930, NZ2RK-528SVM5
$147.86

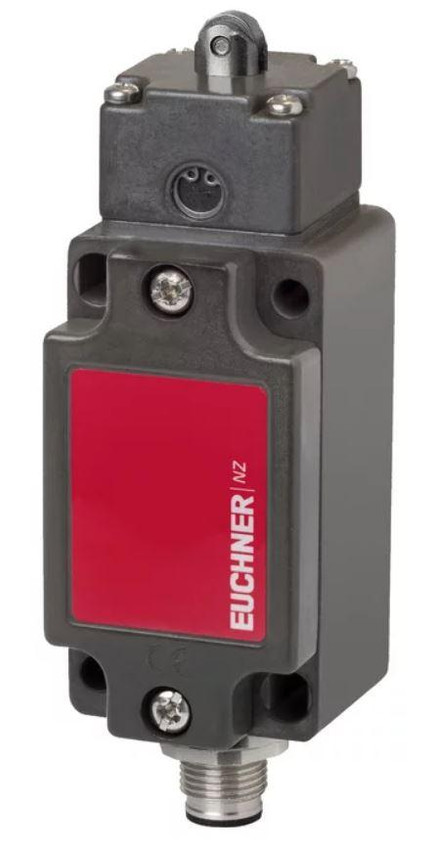

Single Plunger, NZ2RK-528SVM5
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Housing material: Housing Anodized die-cast alloy
- Ambient temperature: -25 - 80 °C
- Degree of protection: IP67
- Contact material: Silver alloy, gold flashed
- Switching principle Snap-action switching contact
- Installation orientation: Any
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
- Connection: 1 x Plug connector M12
- Approach speed: 0,1 - 50 m/min
- Actuating element: Plain bearing metal Roller plunger
- Actuating force: 15 - 30 N
- Thermal rated current Ith: 4 A
- Utilization category acc. to EN 60947-5-1: AC-15 4A 30V | DC-13 4A 24V
- Short circuit protection according to IEC 60269-1: 4A gG
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 1.5 kV
- Switching current: Min. at DC 24V 1 mA
