098649
Alt: 98649, NZ2HB-511SVM5L060GE
$181.30

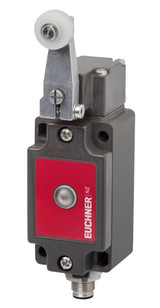

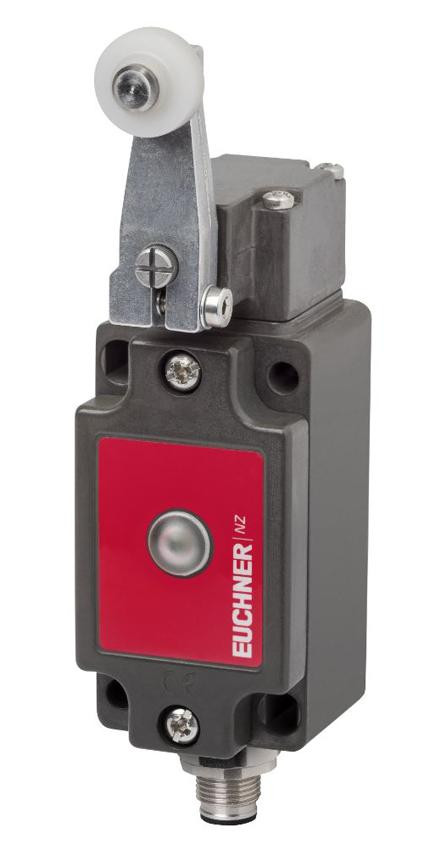

Single Plunger, NZ2HB-511SVM5L060GE
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Version A according to EN 50041 (plastic roller ø 18 mm)
- Display module: AC/DC 12 - 60 - 60 V LED yellow
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 50 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current: min. at DC 24V 10 mA
- Thermal rated current Ith: 4 A
- Utilization category: AC-15 4A 30V | DC-13 4A 24V
- Actuating element: Slide bearing plastic Lever arm
- Actuating force min.: 15 N
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.1 - 300 m/min
- Connection: 1 x Plug connector M12
- Degree of protection: IP67
- Installation orientation: any
- Contact: Silver alloy, gold flashed
- Housing: Anodized die-cast alloy
- Mechanical life: 30 x 10⁶
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
- Switching principle: Snap-action switching contact
