089092
Alt: 89092, NZ2HB-511L060
$197.16

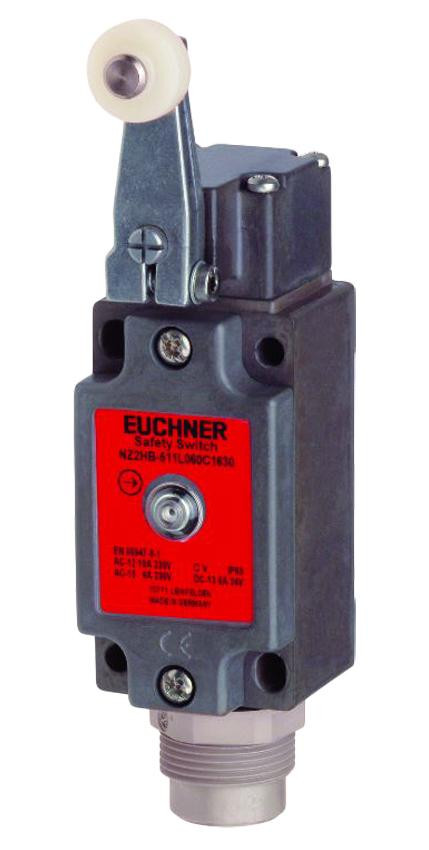

Single Plunger, NZ2HB-511L060
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Type A according to EN 50041(plastic roller ø 18 mm)
- Display module: AC/DC 12 - 60 - 60 V LED red
- Degree of protection: IP65
- Mechanical life: 30 x 106
- Short circuit protection according to IEC 60269-1: 6A gG
- Housing material: Housing Anodized die-cast alloy
- Contact material: Silver alloy, gold flashed
- Switching principle: Snap-action switching contact
- Installation orientation: Any
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
- Connection: 1 x Plug connector SR6
- Approach speed: 0.1 - 300 m/min
- Actuating element: Slide bearing plastic Lever arm
- Actuating force: min.15 N
- Thermal rated current: 6 A
- Utilization category acc. to EN 60947-5-1: AC-15 6A 230V / DC-13 6A 24V
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Switching current: Min. at DC 24V 10 mA
