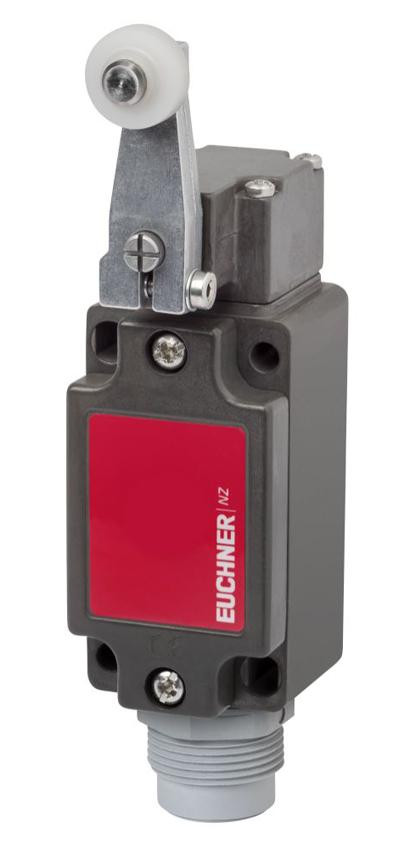

Description
Features Include:
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 50 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current: min. at DC 24V 1 mA
- Thermal rated current Ith: 4 A
- Utilization category: AC-15 4A 50V | DC-13 4A 24V
- Actuating element: Slide bearing plastic Lever arm
- Actuating force min.: 15 N
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.1 - 300 m/min
- Connection: 1 x Plug connector SR11
- Degree of protection: IP65
- Installation orientation: any
- Contact: Silver alloy, gold flashed
- Housing: Anodized die-cast alloy
- Mechanical life: 30 x 10⁶
- Number of door position positively driven contacts: 2
- Number of NO contacts: 2
- Switching principle: Slow-action switching contact
