094169
Alt: 94169, NZ1RS-3131-M-EX
$313.73

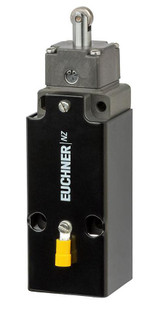

Single Plunger, NZ1RS-3131-M-EX
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Version C according to EN 50041 (steel roller ø 12 mm)
- Suitable for use in zones 2 and 22 (gases and dusts)
- Connection cross-section: 0.34 - 1.5 mm²
- Degree of contamination (external, according to EN 60947-1): 3
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 50 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current: min. at DC 24V 1 mA
- Switching voltage: 12 V
- Thermal rated current Ith: 4 A
- Utilization category: AC-15 4A 50V | DC-13 4A 24V
- Actuating element: Slide bearing metal Roller plunger
- Actuating force at 20°C: 30 N
- Ambient temperature: -20 - +75 °C
- Approach speed: 0.1 - 20 m/min
- Clamping range for cable: 6.5 - 12 mm
- Connection: 1 x Cable gland M20 x 1.5
- Degree of protection: IP67
- Installation orientation: any
- Material: Contact Silver alloy, gold flashed | Housing Anodized die-cast alloy
- Mechanical life: 30 x 10⁶
- Number of door position positively driven contacts: 2
- Number of NO contacts: 2
- Roller diameter: 12
- Switching principle: Slow-action switching contact
