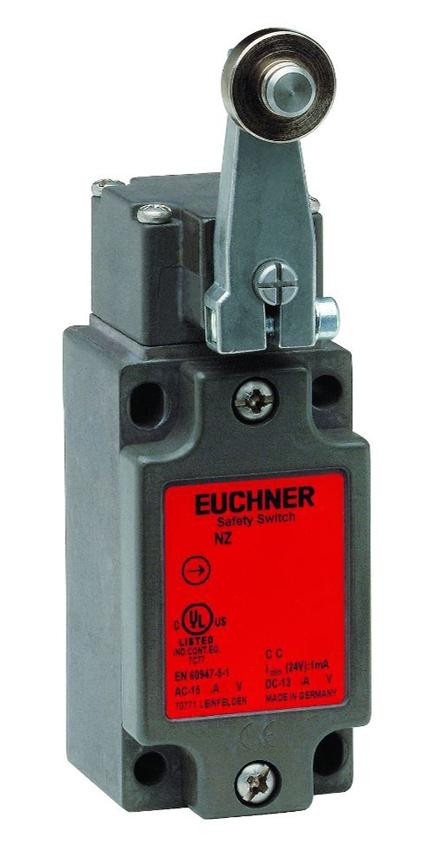

Description
Features Include:
- Version A according to EN 50041 (steel roller ø 18 mm)
- Switching principle: Snap-action switching contact
- Connection cross-section: 0.34 - 1.5 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Short circuit protection according to IEC 60269-1: 6A gG
- Switching current: min. at DC 24V 10 mA
- Thermal rated current Ith: 6 A
- Utilization category: AC-15 6A 230V | DC-13 6A 24V | AC-12 10A 230V
- Actuating element: Slide bearing metal Lever arm
- Actuating force min.: 15 N
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.1 - 60 m/min
- Connection: 1 x M20 x 1.5
- Degree of protection: IP657
- Installation orientation: any
- Material: Housing Anodized die-cast alloy | Contact Silver alloy, gold flashed
- Number of door position positively driven contacts: 1
- Number of NO contacts: 1
