087163

087163

Alt: 87163, N01R572-M

$210.73

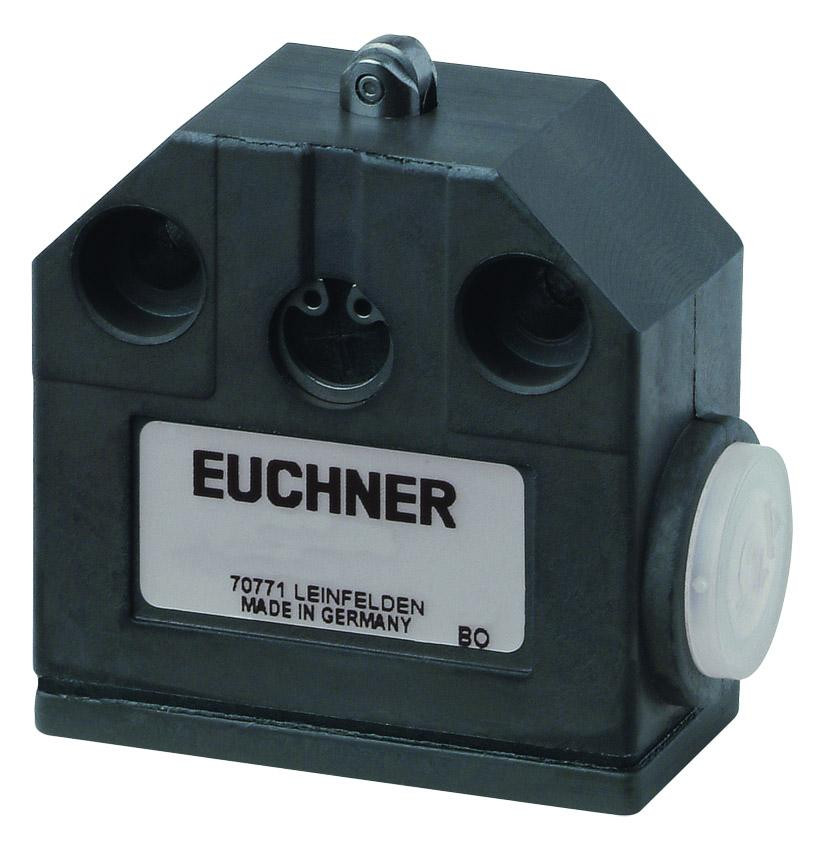

Single Plunger, N01R572-M

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.

Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

  • Connection cross-section: 0.14 - 1 mm²
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Rated insulation voltage Ui: 250 V
  • Switching current (Min. at DC 12V): 10 mA
  • Thermal rated current Ith: 5 A
  • Utilization category: DC-13 1A 24V, AC-15 4A 230V
  • Actuating element: Slide bearing metal Roller plunger
  • Actuating force: 15 - 20 N
  • Ambient temperature: -5 - +125 °C
  • Approach speed: 0.01 - 50 m/min
  • Connection: 1 x M12 x 1.5
  • Degree of protection: IP67
  • Installation orientation: any
  • Material: Housing: Anodized die-cast alloy, Contact: Silver alloy, gold flashed
  • Mechanical life: 0.5 x 10⁶
  • Number of door position NC contacts: 1 Changeover contact
  • Number of door position NO contacts: 1
  • Switching principle: Changeover contact with snap-action function
