091001
Alt: 91001, N01R550-MC1526
$201.98

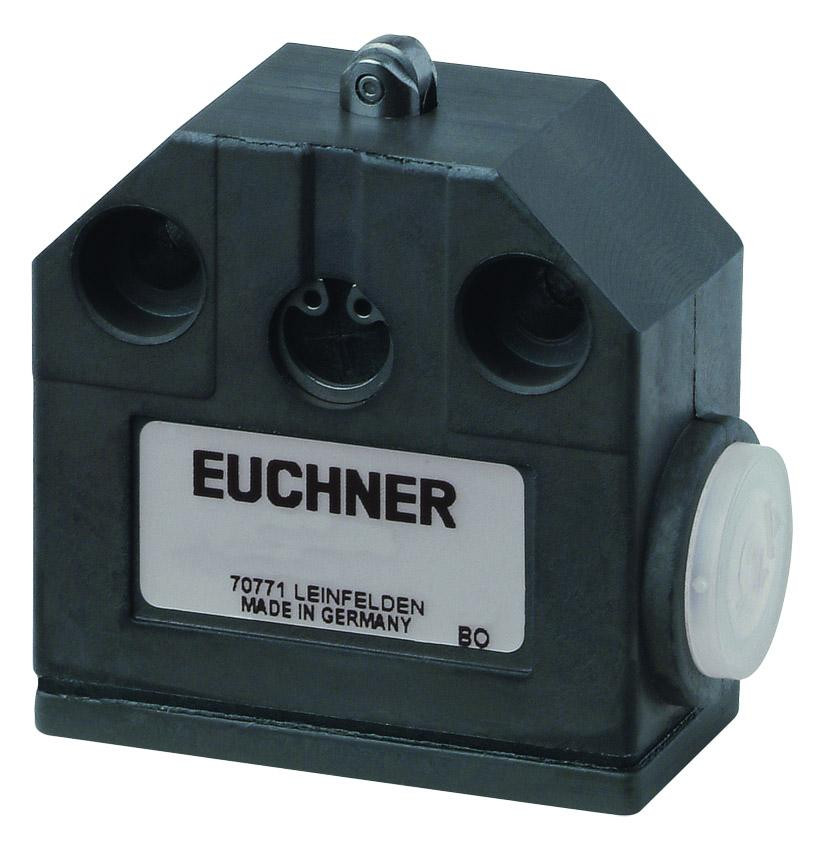

Single Plunger, N01R550-MC1526
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Rated impulse withstand voltage Uimp: 2 kV
- Rated insulation voltage Ui: 50 V
- Switching current (Min. at DC 24V): 10 mA
- Thermal rated current Ith: 4 A
- Utilization category: DC-13 2A 24V
- Actuating element: Slide bearing metal Roller plunger
- Actuating force: 15 - 20 N
- Ambient temperature: -5 - +80 °C
- Approach speed: 0.01 - 50 m/min
- Connection: 1 x Plug connector M12
- Degree of protection: IP67
- Installation orientation: any
- Material: Housing: Anodized die-cast alloy, Contact: Silver alloy, gold flashed
- Mechanical life: 10 x 10⁶
- Number of door position NC contacts: 1 Changeover contact
- Number of door position NO contacts: 1
- Switching principle: Changeover contact with snap-action function
