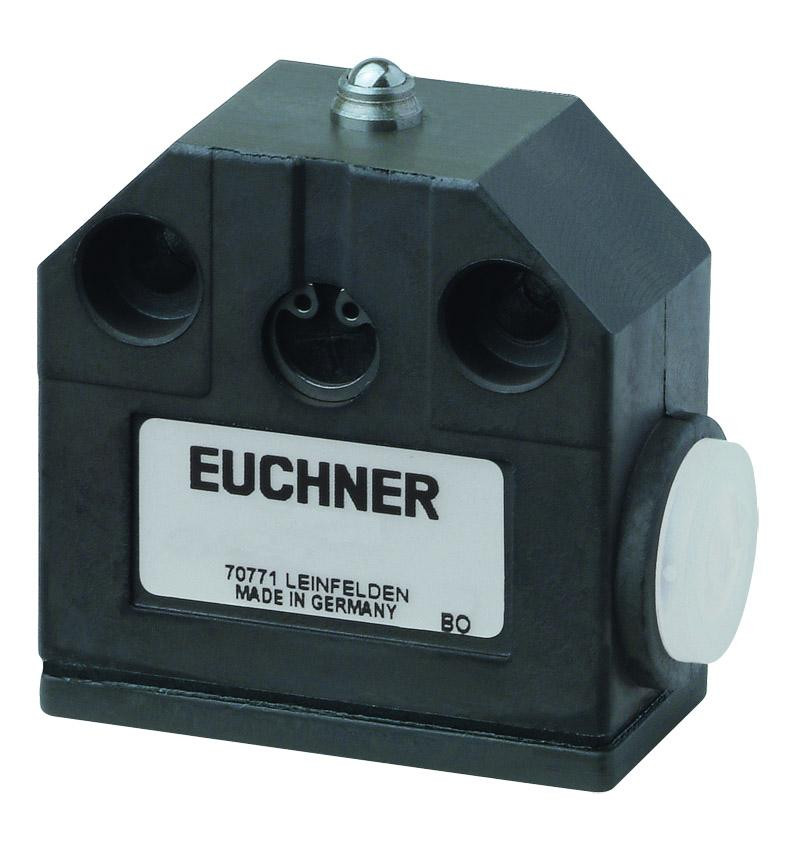

Description
Features Include:
- Connection cross-section: 0.14 - 1 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Switching current (Min. at DC 24V): 10 mA
- Thermal rated current Ith: 3 A
- Utilization category: DC-13 1A 24V, AC-15 3A 230V
- Actuating element: Slide bearing metal Ball plunger
- Actuating force: 15 - 20 N
- Ambient temperature: -5 - +125 °C
- Approach speed: 0.01 - 8 m/min
- Connection: 1 x M12 x 1.5
- Degree of protection: IP67
- Installation orientation: any
- Material: Housing: Anodized die-cast alloy, Contact: Silver alloy, gold flashed
- Mechanical life: 0.5 x 10⁶
- Number of door position NC contacts: 1 Changeover contact
- Number of door position NO contacts: 1
- Switching principle: Changeover contact with snap-action function
