091002
Alt: 91002, N01K550-MC1526
$194.31

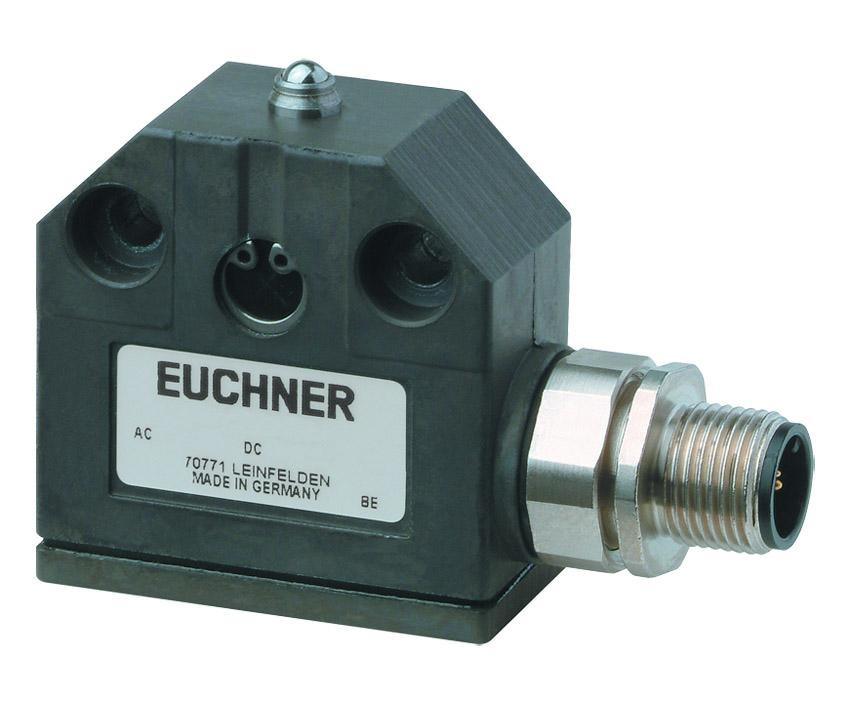

Single Plunger, N01K550-MC1526
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated impulse withstand voltage Uimp: 2 kV
- Rated insulation voltage Ui: 50 V
- Switching current (Min. at DC 24V): 10 mA
- Thermal rated current Ith: 4 A
- Utilization category: DC-13 2A 24V
- Actuating element: (Steel ball D ball = 4mm) Ball plunger
- Actuating force: 15 - 20 N
- Ambient temperature: -5 - +80 °C
- Approach speed: 0.01 - 8 m/min
- Connection: 1 x Plug connector M12
- Degree of protection: IP67
- Installation orientation: any
- Material: Housing: Anodized die-cast alloy, Contact: Silver alloy, gold flashed
- Mechanical life: 10 x 10⁶
- Number of door position NC contacts: 1 Changeover contact
- Number of door position NO contacts: 1
- Switching principle: Changeover contact with snap-action function
