Euchner

099687

Alt: 99687, TK1-4131CB024M

$515.62

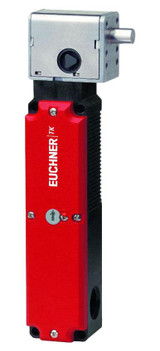

Safety Switch, TK1-4131CB024M

Minimum Purchase:
1 unit
Adding to cart… The item has been added
099687
099687
099687
099687
Description

Features Include:

  • Mounting on plastic housing TP with actuating head and locking pin made of metal
  • High locking forces of 5,000 N
  • Auxiliary release on the switch head
  • Actuating element for contact separation on the front
  • Switching principle: Slow-action switching contact
  • Connection cross-section: 0.34 - 1.5 mm²
  • Power consumption: 8 W
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Rated insulation voltage Ui: 250 V
  • Short circuit protection according to IEC 60269-1: 4A gG
  • Solenoid duty cycle: 100 %
  • Solenoid operating voltage: AC/DC 24 V -15% - +10%
  • Switching current min. at 24 V: 1 mA
  • Switching voltage min. at 10 mA: 12 V
  • Thermal rated current Ith: 4 A
  • Utilization category: DC-13 4A 24V | AC-15 4A 230V
  • Actuation frequency max.: 1200 1/h
  • Ambient temperature: -20 - +55 °C
  • Approach direction: C
  • Connection: 3 x M20 x 1.5
  • Degree of protection: IP67
  • Guard locking principle: Closed-circuit current principle
  • Installation orientation: any
  • Locking force Fmax: 5000 N
  • Contact: Silver alloy, gold flashed
  • Housing: Reinforced thermoplastic
  • Mechanical life: 1 x 10⁶
  • Number of guard lock monitoring NO contacts: 2
  • Number of guard lock monitoring positively driven contacts: 2
