MC88CH1O1CRT1
Alt: Minimum Order 5 Pieces, Price per Piece
$129.60

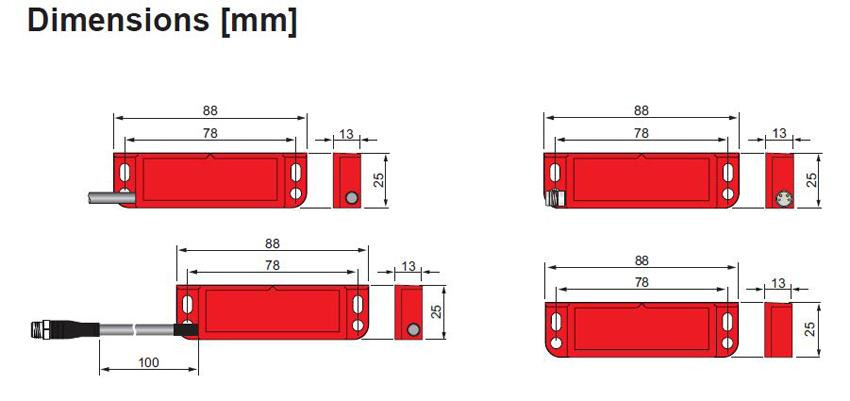

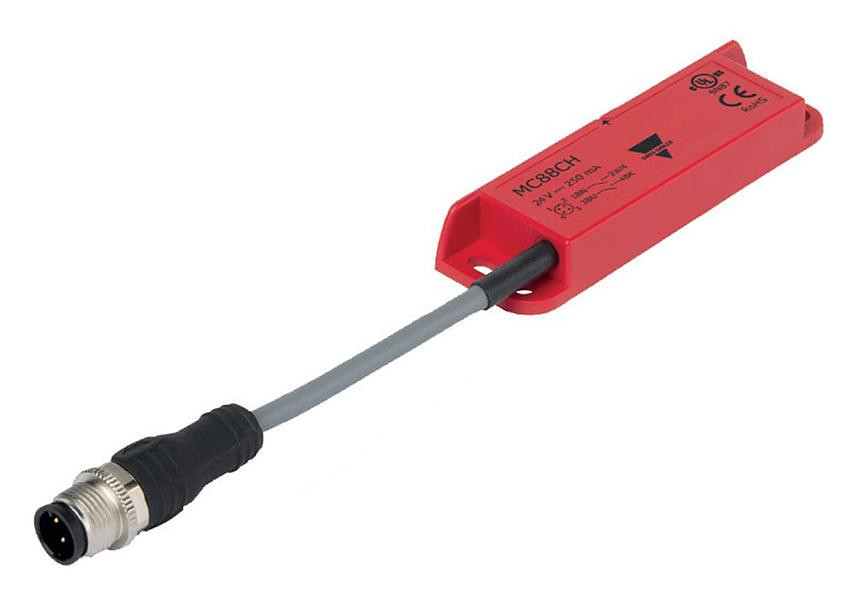

Safety Magnetic Sensor, Rectangular, 88mm Length, 1NO/1NC with Open Guard, Right Exit, Pig Tail with M12 Connector Connection, No LED, 88 x 25 x 13mm, IP67, MC88C Series
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Actuation without mechanical contact for high durability in all environmental conditions.
- Sensors are completely sealed and so insensitive to dirt and dust.
- Suitable for applications with large tolerances or where mechanical features may change over the time, thanks to the wide actuation range.
- LED indication: Yellow (optional)
- Output Type: 2NO, 1NO+1NC, 2NO+1NC Reed contact
- Rated operating voltage (Ue): 12-24 Vac/dc
- Rated operating current (Ie): 0.25 A (resistive load)
- Max switching load: 6 W (resistive load)
- Rated insulation voltage Ui (IEC EN 60947-1): 120 Vac (with cable / M12)
- Connection: Pig tail: PVC cable / 0.1 m; Ø 5 mm; with M12 connector
- Housing material: PBT red
