601.2441.907
Bernstein

601.2441.907

Alt: SID-UV2Z P-RAST

$342.46

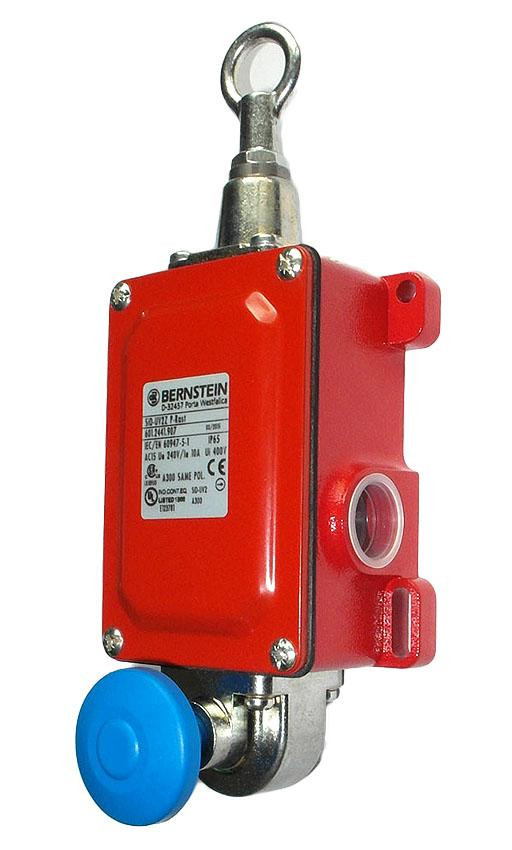

Rope Pull Switch, Latching w/Reset Button, 240V, 16A, Metal w/Tension, IP65

Weight:
1.54 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.

If you do not see the part number you are looking for, please Contact Us, we can find what you need!

Features Include:

  • Rated Insulation Voltage: 400 VAC
  • Rated Impulse Voltage: 4 kV
  • Conv. Thermal Current: 16 A
  • Rated Operational Voltage: 240 V
  • Short-circuit protective device: Fuse 16 A gG
  • Enclosure: Al-die cast
  • Actuator: Pull ring (Zn-die cast)
  • Contact Type: 2 NC (locked), 2 NO (Zb)
  • Connection: 8 screw terminals (M4)
  • Protection Type: IP65 acc. to IEC/EN 60529
