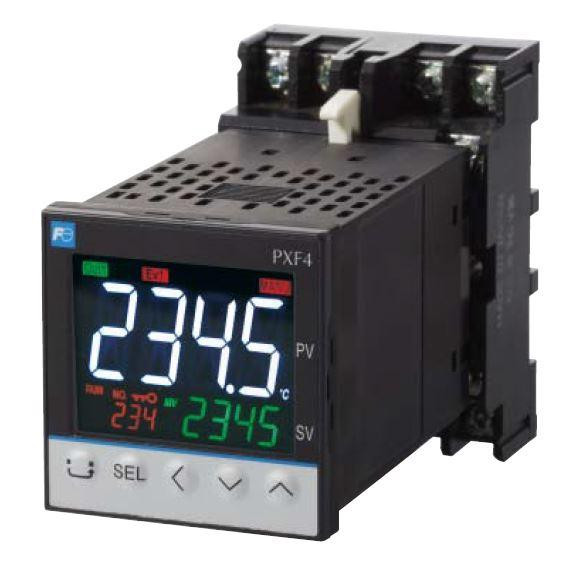

Temperature Controller, Universal Input, RTD/mA, Backwards Compatible Wiring to PXR/W/Z, Control Output: SSR Drive, Alarm Output: 2 Points, 24VAC/DC Power Supply
Accuracy: Thermocouple input: either ±1°C ±1 digit or ±0.3% of indicated value ±1 digit, whichever is larger RTD input: ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
Voltage and current input: ±0.3% FS ± 1digit
Control cycle: 0.1 s to 99 s
Output type: Relay contact output, SSR/SSC drive output, current output, voltage output, motor-operated valve control output
Communication: Communication port x 1 (for optional USB cable), RS-485 port x 1 (Modbus RTU protocol)
Other functions: Ramp soak (simple program control): up to 64 steps, SV/PID selection: up to 8 groups, Soft start, User-defined keys, Auto/manual switching, Simple watt-hour monitoring, Operating days alarm, Heating/cooling control (option), Alarm (option), Multidrop control via RS-485 network, parameter copy, programless communication
Contact output: up to 3
Contact input: up to 1
Transfer output (option): Output signal: voltage or current
CT input (option): for heater break alarm or watt-hour metering.
Current transformer: (for 1–100 A) is optional.
Remote SV input (option): Input signal: voltage or current
Display: M. V. A. LCD, 4-color, white PV display
Dimensions (W x H x D): 48 × 48 × 65.7 mm
Power supply voltage: 100–240 V AC, 50/60 Hz, 24 V AC/DC
Enclosure: Front waterproof (when watertight packing is used), IP 66 equivalent
