Alt: RAL70-IR/32/98
$1,093.77

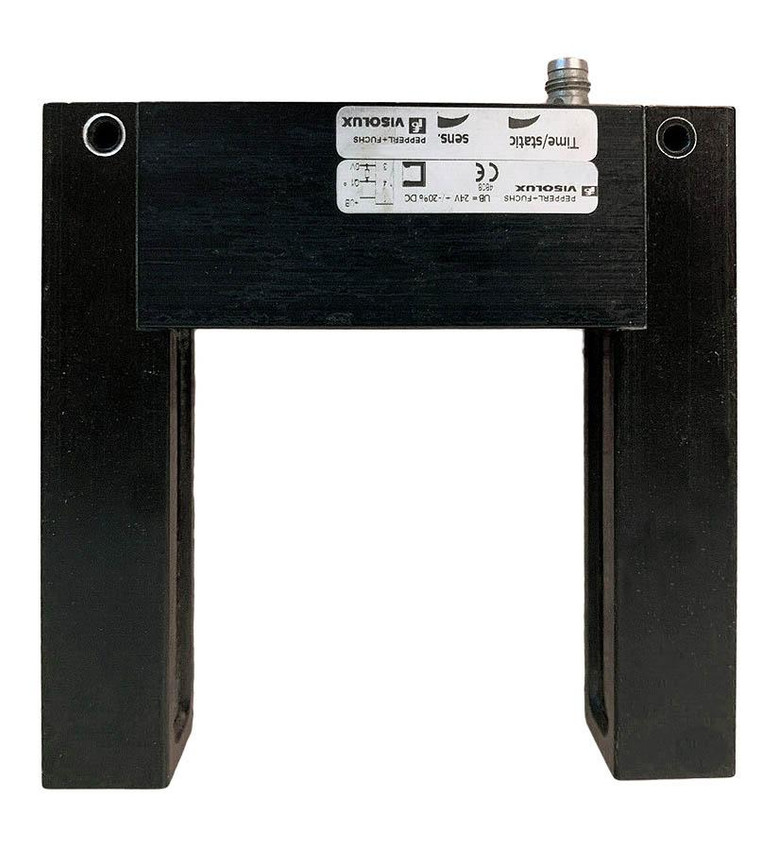

Photoelectric, Slot Grid Sensor, 70mm Slot Width, PNP, M8 Plug, Detect Small Parts, Returns of This Item Must Be Approved by Manufacturer
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Light source: IRED
- Light type: modulated infrared light
- Slot width: 70 mm
- Slot depth: 70 mm
- Ambient light limit: 10000 Lux
- Resolution: 1 mm
- Temperature influence: < 10 %
- Active zone: 70 mm x 64 mm
- Function indicator: LED, yellow
- Control elements: sensitivity adjustment
- Control elements: Time adjuster for Pulse stretching and Dynamic/static operation
- Operating voltage: 24 V DC ± 20 %
- No-load supply current: < 70 mA
- Switching type: dark on
- Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector
- Switching voltage: max. 30 V DC
- Switching current: 200 mA
- Voltage drop: < 2.5 V
- Switching frequency: 5000 Hz
- Repeat accuracy: 0.1 mm
- Pulse extension: 0.1 - 150 ms
- Housing width: 20 mm
- Housing height: 110 mm
- Degree of protection: IP67
- Connection: M8 connector, 3-pin
