PMT20RI
Alt: Minimum Order 5 Pieces, Price per Piece
$206.40
Photoelectric Through-Beam Sensor, Receiver without Timer, 1/2 "NPT Cable Gland, Range up to 20m
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece
Connection
See Spec
Light Source
Infrared
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Through Beam
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67
Size
Rectangular
Warranty
1 Year
Weight
1
Height
65
Width
25
Length/Depth
81
Features Include:
- Rated insulation voltage: 250 VAC (rms)
- Connection: 1/2" NPT cable gland
- Light source GaAIAs: LED, 880 nm
- Light type: Infrared, modulated

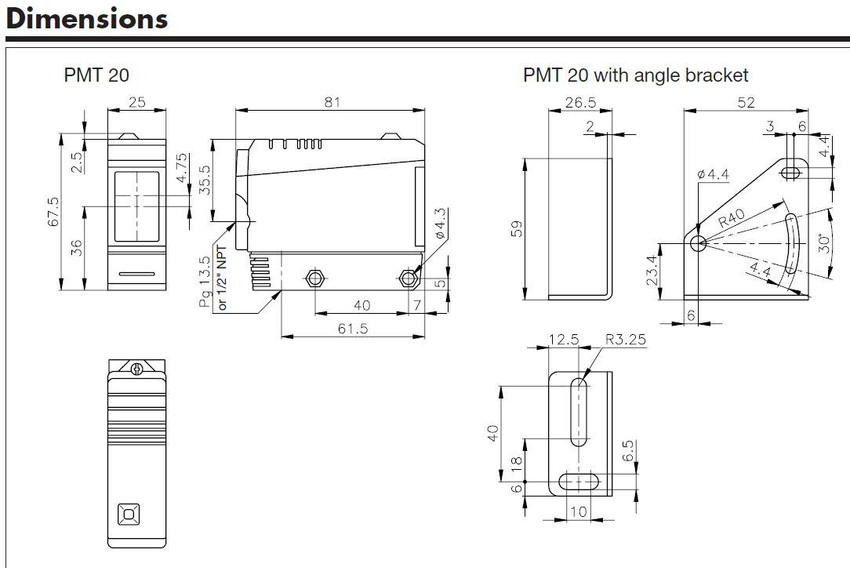

- Dimensions (W x H x D): 25 x 65 x 81 mm
- Housing material: Body PC, grey, reinforced, Front PC, black, Cover PC, black, Cable gland PA, black, reinforced, Mounting bracket Steel, black
- Range: 20 m
- Adjustable sensitivity
- Modulated, infrared light
- Make or break switching function (switch selectable)
- LED-indication for power supply ON (emitter) and target detected (receiver)
