$69.00
BY500-TDT1,2
Alt: This item Replaced BY500-TDT1
$56.00

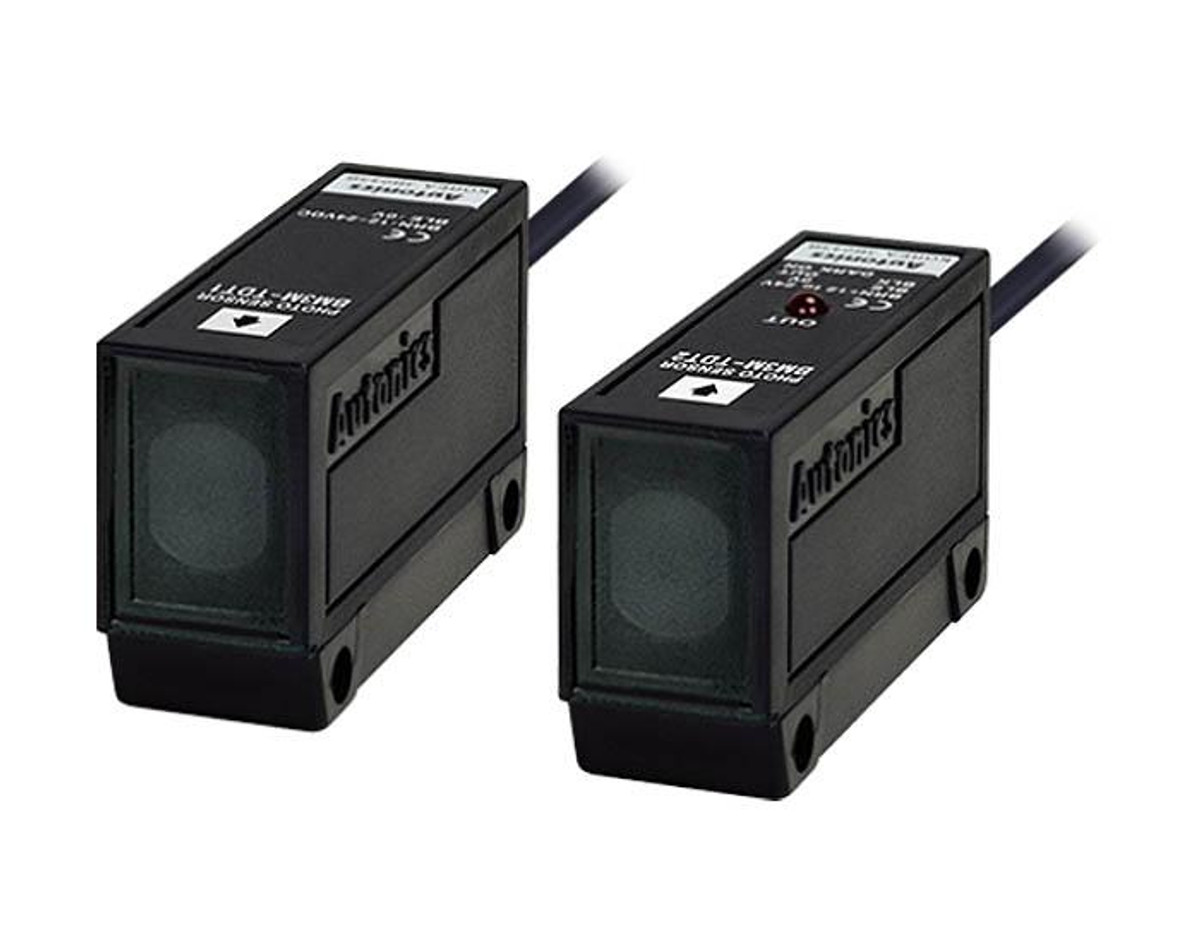

Photoelectric Sensor, Through Beam, Horizontal, Dark On, NPN Output, 12-24VDC
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Small size: W12 x H16 x D30mm
- Minimizing malfunction by extraneous light by synchronizing emitter and receiver.
- Reverse power polarity and overcurrent.
- Fast response speed: Max. 1ms
- Sensing Type: Transmitted beam
- Sensing Distance: 500mm
- Sensing Target: Opaque materials of Min. ⌀5mm
- Light Source: Infrared LED (modulated)
- Control Output: NPN open collector output. Load Voltage: 30VDC, Load Current: Max. 100mA, Residual Voltage: Max. 1V
- Connection: Outgoing cable (2m)
- Material: Case: ABS, Lens: 2m
Technical Information:
