PC50CNP06RP
Alt: Minimum Order 5 Pieces, Price per Piece
$181.60

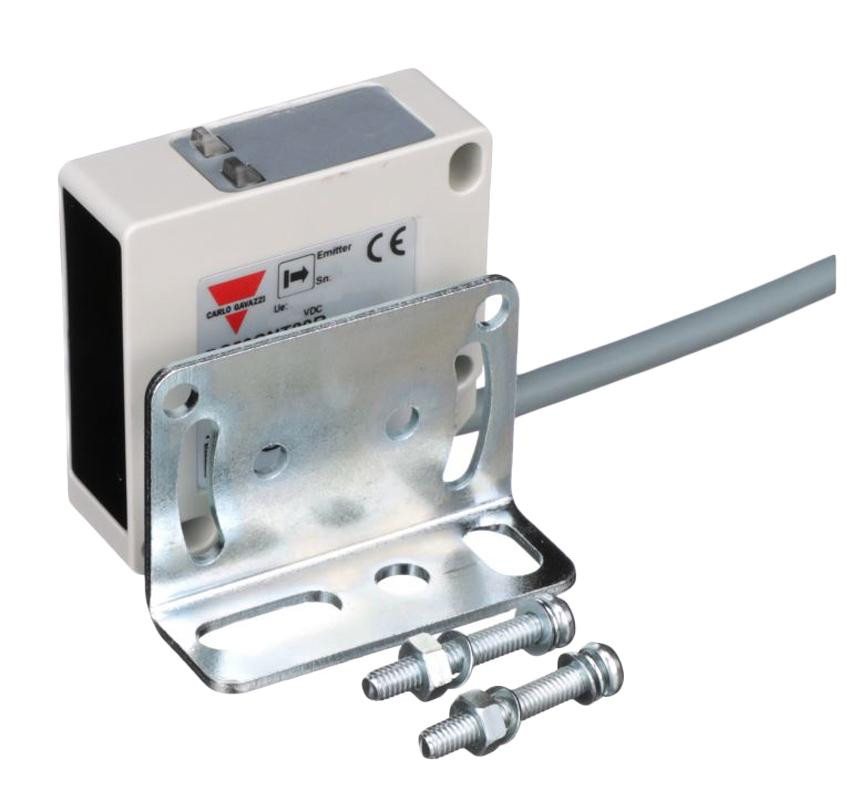

Photoelectric Polarized Retroreflective Sensor, Square, 12-240VDC and 24-240 VAC, 50/60Hz, 6m Range, SPDT NO/NC, Light and Dark Switching, 2m Cable, Red Polarized Modulated Light 660nm, PC/ABS Housing
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Series Features Include:
- Range: 6 m
- Adjustable sensitivity
- Modulated, visible red light, polarized
- Rated operating distance: (Sn) Up to 6 m, with reflector type ER 4, ref. target
- Blind zone: Max. 20 cm
- High immunity to shiny surfaces
- Supply voltage: 12 to 240 VDC and 24 to 240 VAC, 50/60 Hz
- Output: Relay 3 A, 30 VDC, 240 VAC
- Output function: Light or dark operation is switch selectable
- Rated operational power: ≤ 2.5 VA
- Light source: GaAs LED, 660 nm
- Light type: Visible red, modulated
- Make and break switching function
- LED-indication for output ON, signal stability and supply ON
- High degree of EMC
Housing material:
- Body: PC/ABS, grey, reinforced
- Front glass: Red PMMA
- Mounting bracket: Steel, galvanized
Technical Information:
