909112
Alt: ML17-8-450/115B/136
$118.73

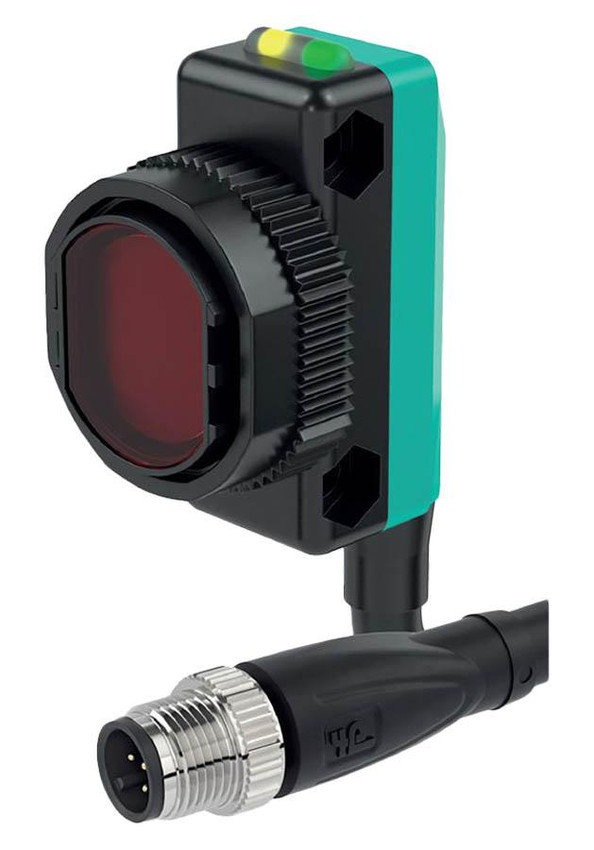

Photoelectric, Light On/Dark On, Diffuse Mode, IP67, 150mm Cable, 10-450mm
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Specifications
Alternate Part Number
ML17-8-450/115B/136
Connection
w/Cable
Light Source
Infrared
NPN or PNP
See Spec or N/A
Light On/Dark On
Light ON/Dark ON
Sensing Method
Diffuse Reflective
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67
Series
ML17 Series
Size
See Spec
Warranty
18 Months
Weight
0.1
Quantity
1
Features Include:
- Detection range: 10 - 450 mm
- Adjustment range: 60 - 450 mm
- Reference target: standard white, 100 mm x 100 mm
- Light source: IRED
- Light type: modulated infrared light , 950 nm
- Operating voltage: 10 - 30 V DC , class 2
- Operating current: 100 mA max per output
- Housing width: 15 mm
- Housing height: 34.5 mm
- Degree of protection: IP67
- Connection: 150 mm PVC cable with 4-pin, M12 connector
- Switching type: light/dark on
- Signal output: 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
- Compact series in universal housing for standard applications
- Miniature design
- Front mounting with M18-threads or side mounting holes
- 360° high visibility LEDs
- Adjustable sensing range
