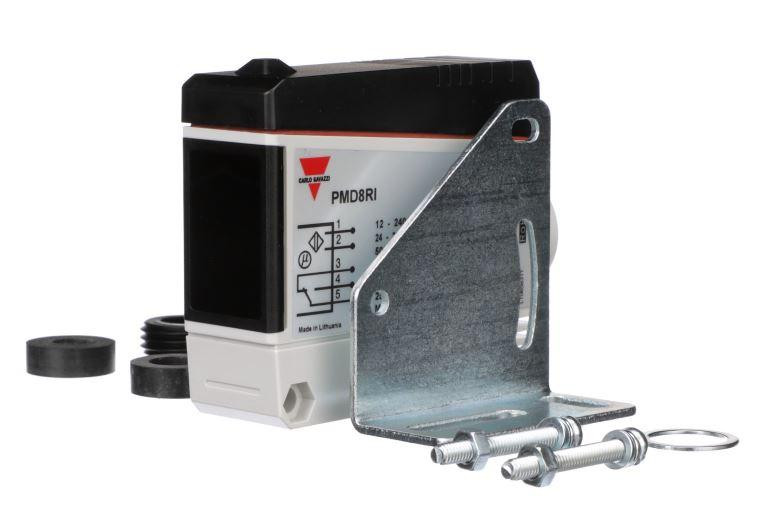

PMD8RI
Alt: Minimum Order 5 Pieces, Price per Piece
$225.60
Photoelectric Diffuse Reflective Sensor, 12-240VDC and 24-240VAC, 50-60Hz, 800mm Range, SPDT NO/NC, 2m Grey PVC Cable, Adjustable Sensitivity, Modulated, Infrared Light 880nm, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Series Features Include:
- Range: 800 mm
- Modulated, infrared light
- Make or break switching function (switch selectable)
- LED-indication for target detected
- Multi supply voltage: 12 to 240 VDC and 24 to 240 VAC, 50/60 Hz
- Rated insulation voltage 250 VAC (rms)

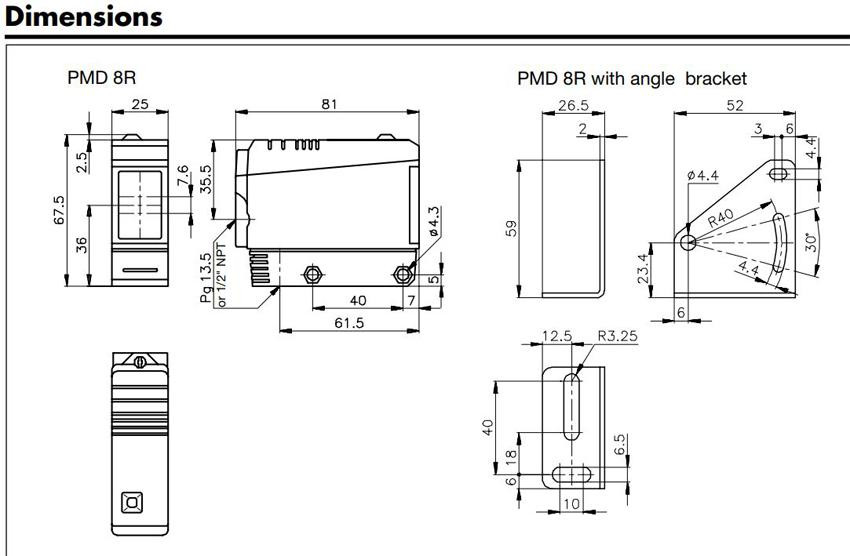

- 25 x 65 x 81 mm reinforced PC housing, IP 67
- Light source: GaAlAs, LED, 880 nm
- Light type: Infrared, modulated
- Timer options (adjustable)
- NO and NC output
Housing material
- Body: PC, grey, reinforced
- Front: PC, black
- Cover: PC, black
- Cable gland: PA, black, reinforced
- Mounting bracket: Steel, black
Technical Information:
Read More About Photoelectric Sensors Here:
