267075-0121
Alt: OBR12M-R100-2EP-IO-V31-L,
$165.02

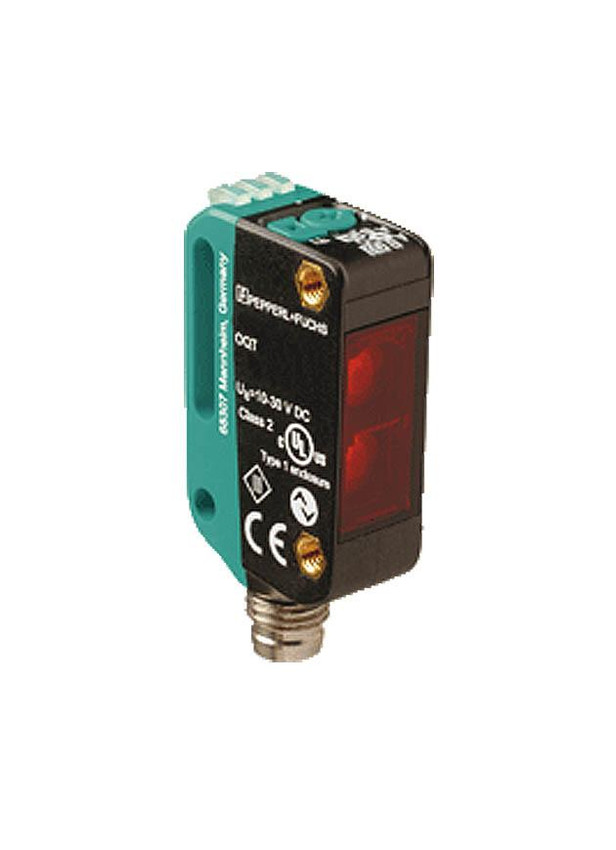

Photoelectric, DC, Retroreflective, Laser, 0.2 … 12 m, M8 Quick Disconnect
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
- Both R10x and R20x offer IO-Link, DuraBeam and MPT
- R10x - small housing design
- R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Series Features Include:
- Effective detection range: 0 - 12 m
- Reflector distance: 0.2 - 12 m
- Threshold detection range: 15 m
- Reference target: H50 reflector
- Light source: laser diode
- Light type: modulated visible red light
- Polarization filter: yes
- Wave length: 680 nm
- Beam divergence: > 5 mrad d63 < 2 mm in the range of 250 mm - 750 mm
- Pulse length: 1.6 µs
- Repetition rate: max. 17.6 kHz
- Diameter of the light spot: approx. 30 mm at a distance of 12 m
- Operating voltage: 10 - 30 V DC
- Ripple: max. 10 %
- No-load supply current: < 20 mA at 24 V supply voltage
- Signal output: 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
- Switching voltage: max. 30 V DC
- Switching current: max. 100 mA , resistive load
- Voltage drop: ≤ 1.5 V DC
- Switching frequency: 2000 Hz
- Housing width: 11 mm
- Housing height: 44.5 mm
- Housing depth: 21.5 mm
- Degree of protection: IP67 / IP69 / IP69K
- Connection: M8 x 1 connector, 4-pin
