Pizzato
VN NG-F31
Actuator for NG Series with High Coding Level, Switch Recognizes One Single Type F31 Actuator
$113.22
NG 2D5D411A-F30
Alt: NG Series
$973.29

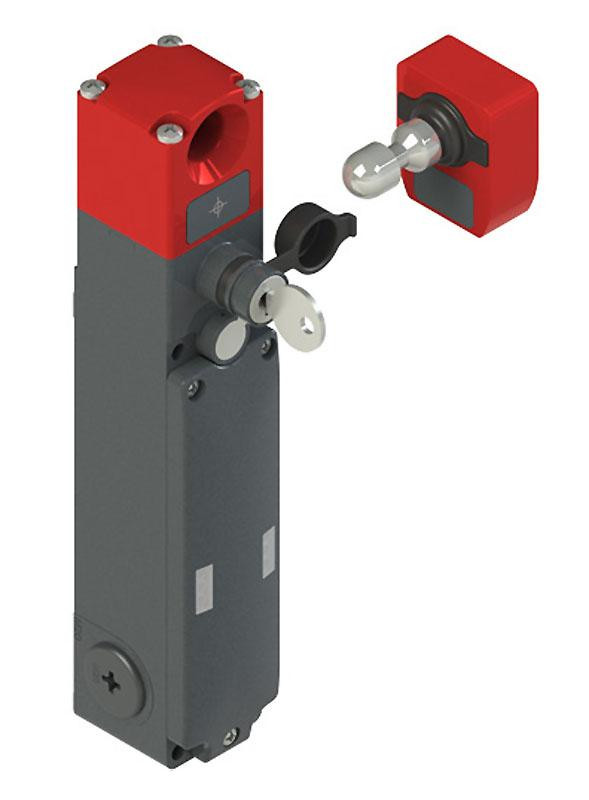

RFID Safety Switch with Solenoid NG Series with Block and Separate Actuator
- Weight:
- 3.85 LBS
- Minimum Purchase:
- 1 unit
Description
Our Pizzato NG series offers a safety locking switch with RFID technology.
Features Include:
- Actuator holding force: 9750N
- Models with up to IP67 and IP69K protection
- PL e offers series connection of up to 32 devices
- Optional integrated control devices
- Metal housing (NS series offers plastic housing)
Actuator options:
- VN NG F30 - low level code actuator, the switch recognizes any type F30 actuator
- VN NG F31 - high level coded actuator, the switch recognizes one single type F31 actuator
Series Feature Include:
- Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653
- Cover configuration: No device
- Housing: Metal housing, three threaded M20x1,5 conduit entries
- Head: Rotating head with lock auxiliary release device
- Working method: D working method, locked actuator with de-energized solenoid
- Inputs and outputs: 2 safety inputs IS1-IS2, 2 safety outputs OS1-OS2, 1 signaling output O3: actuator inserted, 1 signaling output O4: actuator locked, I4 or IE1-IE2 inputs for solenoid activation, 1 input I3: actuator programming / reset
- Safety output activation OS: Activation mode 1: safety outputs active with actuator inserted and locked
- Actuator: Complete with universal actuator with low coding level VN NG-F30
Technical Information:
Read more about Switches here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Pizzato
VN NG-F30
Actuator for NG Series with Low Coding Level, Switch Recognizes Any Type F30 Actuator
$113.22
