8811612420

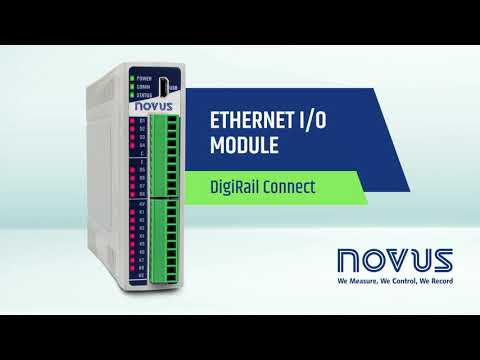

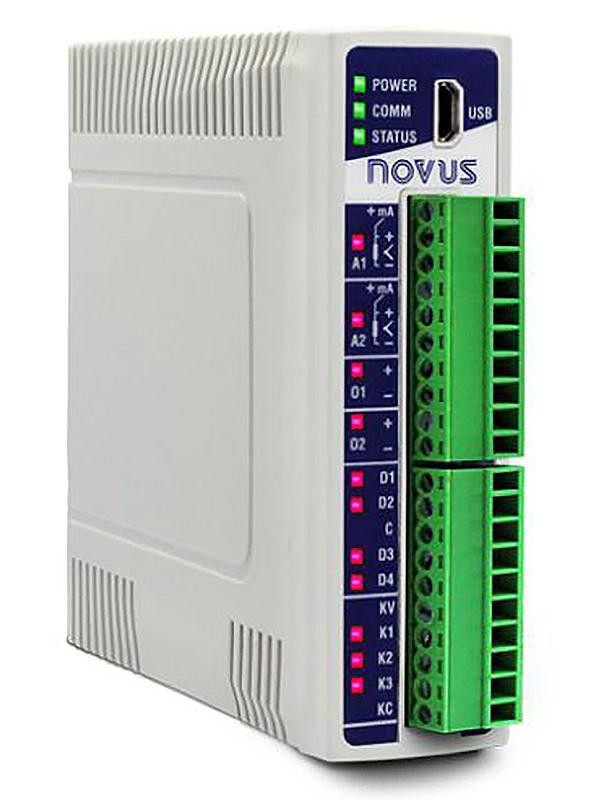

Alt: DigiRail Connect DMIX
$250.00
Ethernet & RS485 I/O Module, 8DI, 8DO, ETH, Can Be Used with Any Brand of Automation System
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Inputs: RAMIX: 4 digital and 2 analog (isolated) / DMIX: 8 digital
- Outputs: RAMIX: 3 digital or 2 relay and 2 analog (isolated) / DMIX: 4 relays or 8 digital
- Analog signals: Thermocouples J, K, T, N, E, R, S and B / Pt100, Pt1000, NTC / 0-60 mV, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Analog input impedance: 0-60 mV, Pt100, Pt1000, NTC and thermocouples: >10 MΩ / 0-5 V, 0-10 V: >1 MΩ / 4-20 mA: 15 Ω + (1 V @ 20 mA)
- Software: NXperience (via USB)
- Enclosure: ABS+PC
Power Supply:
- Voltage: 10 - 36 VDC
- Maximum Consumption: 5 W
- Typical Consumption: 20 mA
Digital Input characteristics:
- Logical level "0": < 0.5 V
- Logical level "1": > 3 V
- Maximum voltage: 30 V
- Input impedance:270 kΩ
- Input current: @ 30 Vdc (typical) 0.15 mA
- Maximum frequency (square wave):
- Dry contact: 10 Hz
- PNP: 250 Hz
- NPN: 250 kHz
Digital Output characteristics:
- Maximum load current: 500 mA
- Short circuit current: 200 mA
- Maximum switching voltage: 30 VDC
- Minimum switching voltage: 6 VDC
Relay Output characteristics:
- Type: SPST-NO and SPDT
- Maximum load current: 3 A (SPST) / 6 A (SPDT)
- Switching voltage: 250 VAC
- Suitable for resistive loads
Analog Output characteristics:
- Signal types: 0-20 mA, 4-20 mA, 0-10 V
- Maximum load: 0-20 / 4-20 mA: ≤ 500 Ω
- 0-10 V: ≥ 2000 Ω
Analog Channel resolution:
- Analog inputs: 16 bits (65000 levels)
- Analog outputs: 12 bits
Communication interface:
- USB
- Ethernet: 10/100 Mb/s, IEEE standard 802.3u
- RS485
