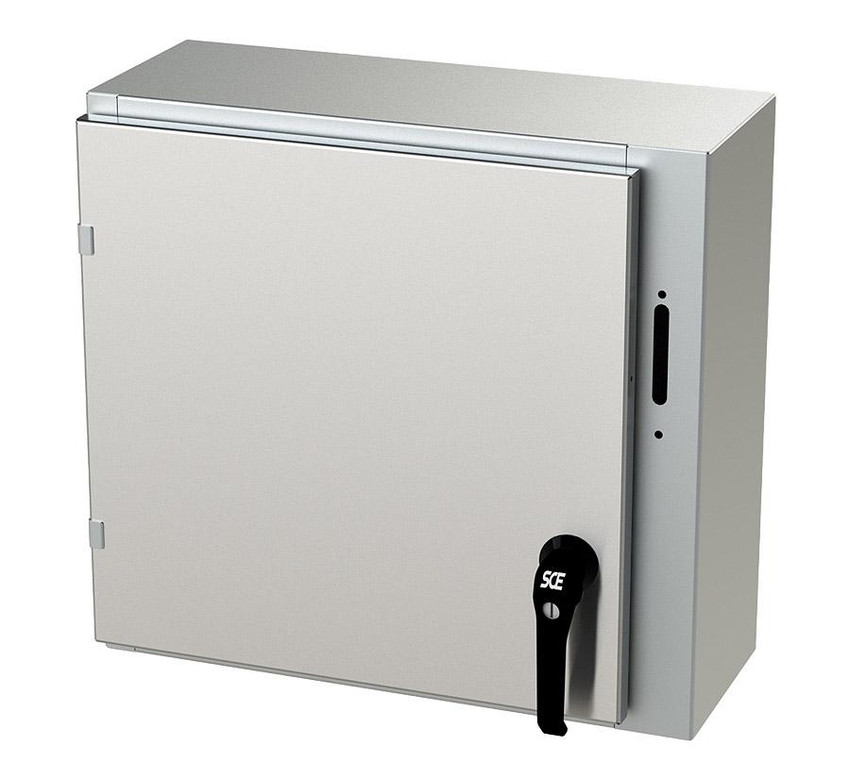

SCE-20XEL2108SSLP

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

• Modular enclosures
• • Endless combinations, multiple door arrangements, up to ten
  • Modular units work around each other for users to interact with them and equipment they hold
• Wall mount enclosures

  • Generally the most expensive group
  • Indoor or outdoor options
  • Available as pushbutton enclosures up to large electrical requirements
• Free-standing and floor-mounted enclosures
  • Mostly used outdoors and needing multi-door
  • Generally used for a large amount of electical components, single or multiple door
• Non-Metallic enclosures
  • Includes fiberglass, polycarbonate
  • Used to protect from corrosion, UV rays or very damp conditions
  • Allows windowed or windowless
  • Includes pushbutton, junction, wall-mount and many other options
• Operator system enclosures
  • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Series Features Include:

• 0.075 In. stainless steel Type 304.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Pour in place oil & water resistant gasket
• Collar studs 3/8-16 provided for mounting optional panels.
• Holes provided in body for mounting disconnect operating handle and operating mechanism.
• Stainless steel concealed hinges.
• Doors are interchangeable and easily removed by pulling hinge pin.
• 3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches.
• Latches are opened or closed with screwdriver (optional tamper-resistant inserts available).
• Mounting holes in back of enclosure.
• Mounting hardware, sealing washer and hole plug included.
• Ground studs on door and body.
• Black zinc die cast coin-proof/padlocking handle.
• Removable print pocket.
