072645

072645

Alt: 72645, ZSB072645

$1,114.90

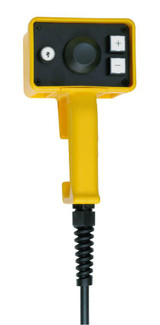

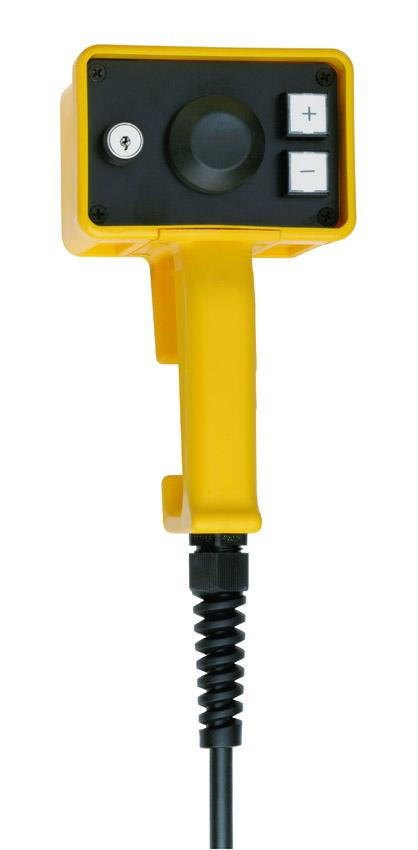

Enabling Pushbutton, ZSB072645

Weight:
3.81 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.

Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Series Features Include:

  • 3-stage function
  • Housing G3
  • Straight connecting cable, 5 m
  • Plug connector
  • Two illuminated pushbuttons
  • Key-operated rotary switch
  • Including holder
  • Connecting cable: 8x0.5 mm² + 8x0.14 mm²
  • Rated conditional short-circuit current: 100 A
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Rated insulation voltage Ui: 250 V
  • Short circuit protection according to IEC 60269-1 (at 24V): 2A gG
  • Switching current (min. at 24 V): min. 1 mA
  • Switching voltage (min. at 10 mA): min. 12 V
  • Utilization category: DC-13 2A 24V/ AC-15 2A 24V
  • Cable length: Straight 5 m
  • Connection: Plug connector number of pins 17
  • Degree of protection: IP65
  • Housing: Cap: Elastomer, low PAH, black, Housing: Plastic, yellow
  • Number of NO contacts: 2
  • Number of positively driven contacts: 1
  • Switching principle: Slow-action contact elements
