072403
Alt: 72403, ZSB072403
$1,184.48

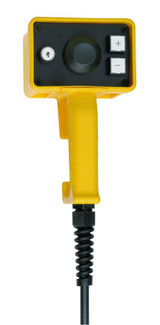

Enabling Pushbutton, ZSB072403
- Weight:
- 6.17 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- 3-stage function
- Housing G3
- Straight connecting cable, 12 m
- Plug connector
- Two illuminated pushbuttons
- Key-operated rotary switch
- Including holder
- Connecting cable: 8x0.5 mm² + 8x0.14 mm²
- Rated conditional short-circuit current: 100 A
- Rated impulse withstand voltage Uimp: 0.8 kV
- Rated insulation voltage Ui: 250 V
- Short circuit protection according to IEC 60269-1 (at 24V): 2A gG
- Switching current (min. at 24 V): min. 1 mA
- Switching voltage (min. at 10 mA): min. 12 V
- Utilization category: AC-15 2A 24V / DC-13 2A 24V
- Connection: Plug connector number of pins 17
- Degree of protection: IP65
- Housing: Cap: Elastomer, low PAH, black, Housing: Plastic, yellow
- Number of NO contacts: 2
- Number of positively driven contacts: 1
- Switching principle: Slow-action contact elements
