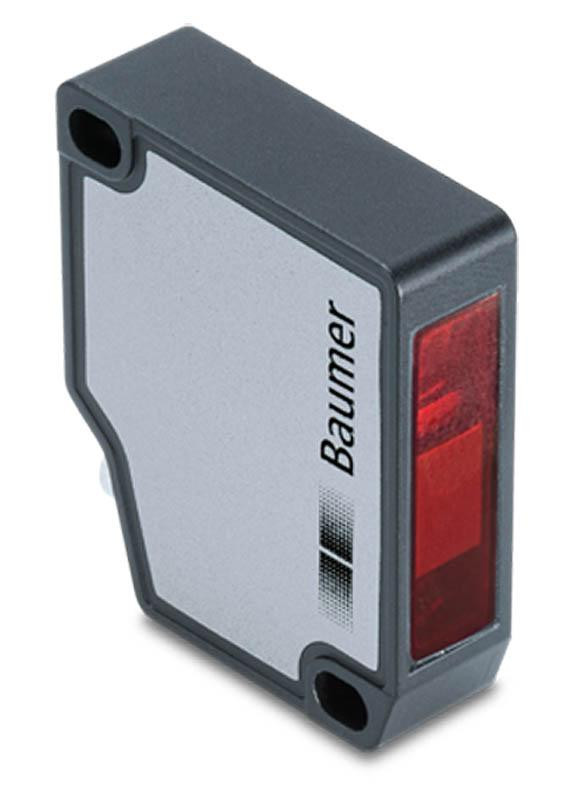

OM30-P0550.HV.YIN

Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.



Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.

Features Include:

• Voltage supply range +Vs: 12 - 28 VDC
• Current consumption max. (no load): 50 mA
• Measuring Distance: 50 - 550 mm
• Measuring frequency: 5000 Hz
• Adjustment: Teach-in: Teach-in: button / IO-Link
• Power on indication: LED green
• Output indicator: LED red
• Beam type: Point
• Output circuit: Analog and digital
• Light source: Pulsed red laser diode
• Wavelength: 660 nm
• Width/diameter: 40.3 mm
• Height/length: 49 mm
• Depth: 13.6 mm
• Type: Rectangular, front view
• Housing material: Die-cast zinc
• Front (optics): Glass
• Connection types: Connector M8 4 pin
• Automatic adjustment of exposure time for precise measurements on changing materials
• High immunity to ambient light for reliable measurements regardless of ambient conditions

Technical Information:

• Baumer OM30-P0550.HV.YIN Datasheet
• Baumer OM20/OM30 Performance Laser Distance Sensor Flyer
• Baumer OM20/OM30 Performance Laser Distance Sensor Quick Start Guide
• Baumer OM20/OM30 Performance Laser Distance Sensor Operating Manual
• Baumer Optical Distance Sensor Brochure
• Baumer Photoelectric Sensors Product Catalog
• Baumer Distance Measurement Product Overview
