$35.44
OM30-P0350.HV.AUN
Alt: 11232070
$1,549.00
Distance Sensor, 12-28VDC, 50-350mm, 0-10VDC Output, Teach-In, Point Beam, Laser Class 2, Pulsed Red Laser Diode, Die-Cast Zinc, M8 4-pin Connector, IP67, CE, cULus, -10 to +50°C Operating Temperature, 49 x 40.3.5 x13.6mm (HWD)
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Voltage supply range +Vs: 12 - 28 VDC
- Current consumption max. (no load): 50 mA
- Measuring Distance: 50 - 350 mm
- Measuring frequency: 5000 Hz
- Adjustment: Teach-in: Teach-in: button / external
- Power on indication: LED green
- Output indicator: LED red
- Beam type: Point
- Output circuit: Analog
- Light source: Pulsed red laser diode
- Wavelength: 660 nm

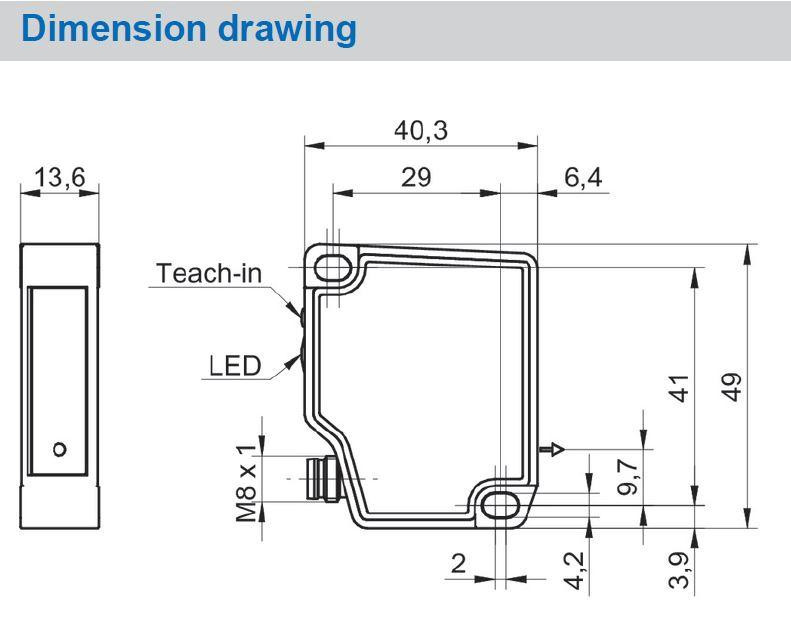

- Width/diameter: 40.3 mm
- Height/length: 49 mm
- Depth: 13.6 mm
- Type: Rectangular, front view
- Housing material: Die-cast zinc
- Front (optics): Glass
- Connection types: Connector M8 4 pin
- Automatic adjustment of exposure time for precise measurements on changing materials
- High immunity to ambient light for reliable measurements regardless of ambient conditions
Technical Information:
- Baumer OM30-P0350.HV.AUN Datasheet
- Baumer OM20/OM30 Performance Laser Distance Sensor Flyer
- Baumer OM20/OM30 Performance Laser Distance Sensor Quick Start Guide
- Baumer OM20/OM30 Performance Laser Distance Sensor Operating Manual
- Baumer Optical Distance Sensor Brochure
- Baumer Photoelectric Sensors Product Catalog
- Baumer Distance Measurement Product Overview
