Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
Operating voltage: 10 - 30 V DC , class 2
Ripple: max. 10 %
No-load supply current: < 25 mA
Operating current: 100 mA max per output
Housing width: 15 mm
Housing height: 34.5 mm
Degree of protection: IP67
Connection: 150 mm PVC cable with 4-pin, M12 connector
Switching type: light/dark on
Signal output: 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage: max. 30 V DC
Switching current: max. 100 mA

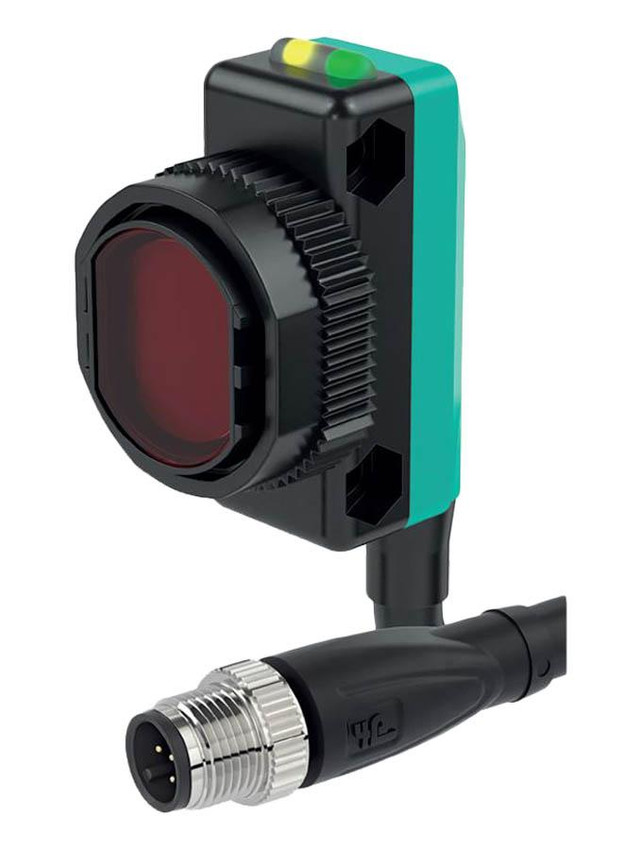

Compact series in universal housing for standard applications
Miniature design
Front mounting with M18-threads or side mounting holes
360° high visibility LEDs
Time-saving mounting with quick clamp system
Version with polarized filters detect shiny objects
